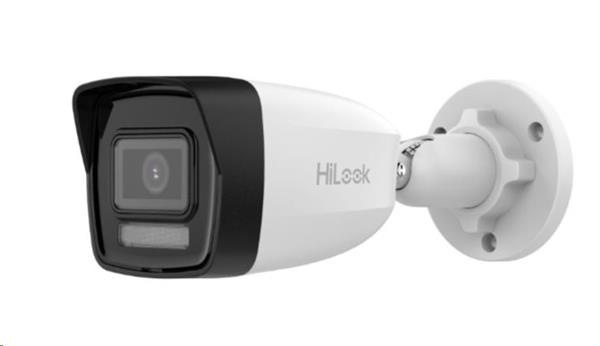

HiLook IPC-B180HA-LU(2.8mm) - "1/3"" Progressive CMOS, ICR,

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°



4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°



Lens Mount

M12

Iris Type

Fixed

Aperture

F2.0

DORI

DORI

2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m



4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m



Illuminator

Supplement Light Type

IR,White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz:



12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)



60 Hz:



15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)



Sub-Stream

50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)



60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)



Video Compression

Main stream: H.265+/H.265/H.264+/H.264,



Sub-stream: H.265/H.264/MJPEG



Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio

Audio Type

Mono sound

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile T),ISAPI,SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

User/Host

Up to 32 users



3 user levels: administrator, operator, and user



Client

iVMS-4200,HiLookVision

Web Browser

Plug-in required live view: IE 10, IE 11,



Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+




Wide Dynamic Range (WDR)

120 dB

SNR

? 52 dB

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP,send email,notify surveillance center,trigger capture

General

Power

12 VDC ± 25%, 0.41 A, max. 5 W,O5.5 mm coaxial power plug,reverse polarity protection,



PoE: IEEE 802.3af, Class 3, max. 6.5 W



Material

Metal & Plastic

Dimension

184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")

Package Dimension

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Approx. 270 g (0.6 lb.)

With Package Weight

Approx. 481 g (1.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,



RCM: AS/NZS CISPR 32: 2015,



IC: ICES-003: Issue 7



Safety

CB: IEC 62368-1: 2014+A11,



CE-LVD: EN 62368-1: 2014/A11: 2017



Environment

CE-RoHS: 2011/65/EU,



WEEE: 2012/19/EU,



Reach: Regulation (EC) No 1907/2006



Protection

IP67: IEC 60529-2013
