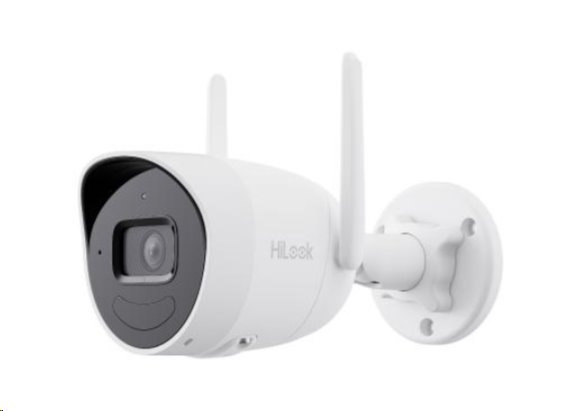

HiLook IPC-B140HA-D/W(W)(2.8mm) - WiFi kamera

Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/25 s to 1/10000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108°



4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°



Aperture

F1.6

Iris Type

Fixed

Lens Mount

M12

Depth of Field

2.8 mm: 1 m to ?



4 mm: 1.5 m to ?



DORI

DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m



4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m



Illuminator

Supplement Light Type

IR

IR Wavelength

850 nm

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Video

Main Stream

50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)



60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)



Sub-Stream

50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)



60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)



Video Compression

Main stream: H.265/H.264,



Sub-stream: H.265/H.264



Video Bit Rate

256 Kbps to 2 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Audio

Audio Compression

G.711,AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz,16 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS

Simultaneous Live View

Up to 4 channels

API

ONVIF, SDK

Security

Password protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface

User/Host

Only one user: administrator

Client

iVMS-4200, HiLookVision, Hik-Partner-Pro

Wi-Fi

Transfer Rate

11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps

Wi-Fi Protocol

802.11n: OFDM,802.11b: DSSS,802.11g: OFDM

Frequency Range

2.412 GHz to 2.472 GHz

Channel Bandwidth

20 MHz

Modulation

802.11b: CCK,QPSK,BPSK,,802.11g: OFDM,,802.11n: OFDM

Wireless Range

Up to 120 m



(The performance varies based on actual environment)



Encryption Mode

WPA-PSK/WPA2-PSK

Antenna

2 Antennas


Image Settings

Saturation, brightness, contrast, and sharpness adjustable by client software

Day/Night Switch

Auto, Schedule, Day, Night

Wide Dynamic Range (WDR)

Digital WDR

Privacy Mask

4 programmable polygon privacy masks

Interface

Built-in Microphone

Yes

Built-in Speaker

Yes

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB



Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (support alarm triggering by specified target type (human and vehicle)), exception

Linkage

Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite



General

Power

12 VDC ± 25%, 0.58 A, max. 7 W,O5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.

Language

English

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

heartbeat,mirror

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Material

Front cover: metal, back cover: plastic

Dimension

175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")

Package Dimension

260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")

Approx. 345 g (0.8 lb.)

With Package Weight

Approx. 635 g (1.4 lb.)

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014



RF

CE-RED (EN 301489-1 V2.1.1(BT or 2.4G)

Safety

CE-LVD: EN 62368-1: 2014/A11: 2017,



CB: IEC 62368-1: 2014+A11



Environment

CE-RoHS: 2011/65/EU,



WEEE: 2012/19/EU



Protection

IP66: IEC 60529-2013


Stránky o produkte:
https://www.hikvision.com/en/products/HiLook-IP-Products/cable-free/wi-fi-cameras/ipc-b140ha-d-w-w-/
