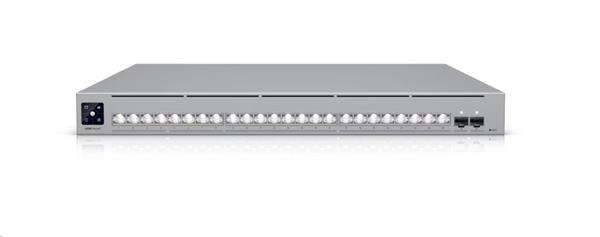

Ubiquiti Professional-grade, 24-port Layer 3 Etherlighting™

Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.



Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*





(16) 10 GbE, (8) 2.5 GbE ports





(2) 25G SFP28 ports





DC power backup ready**



*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

**Requires UniFi RPS.



Technical Specifications

Overview

Dimensions

442 x 480 x 44 mm

(17.4 x 18.9 x 1.7")

Port Layout

2.5 GbE RJ45

8

(2.5G/1G/100M/10M)

10 GbE RJ45

16

(10G/5G/2.5G/1G/100M/10M)

25G SFP28

2

(25G/10G/1G)

Redundancy

DC Power Backup

Layer 3

Yes

Form Factor

Rack mount (1U)

Etherlighting™

Yes

Performance

Switching Capacity

460 Gbps

Total Non-Blocking Throughput

230 Gbps

Forwarding Rate

342 Mpps

Supported VLANs

1,000

MAC Address Table Size

128,000

L3 Table Size

ARP Entries

128,000

IPv4 Routes

256,000

Packet Buffer Size

8 MB

Access Lists

IPv4

256

MAC

256

Layer 3 Features

DHCP Server (Local Networks)

Yes

DHCP Relay

Yes

Inter-VLAN Routing (Local Networks)

Yes

Static Routing (Local Networks)

Yes

Layer 2 Features

LACP Port Aggregation

Yes

STP & RSTP

Yes

IGMP Snooping

Yes

802.1X Control

Yes

MAC-Based ACLs & Device Isolation

Yes

DHCP Snooping & Guarding

Yes

Egress Rate Limit

Yes

Flow Control

Yes

Storm Control

Yes

Multicast & Broadcast Rate Limiting

Yes

MAC Address Blocking

Yes

IP-Based ACLs & Network Isolation

Yes

MAC-Based Port Restriction

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

LLDP-MED

Yes

Voice VLAN

Yes

Loop Protection

Yes

Hardware

Max. Power Consumption

150W

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz

(1) USP RPS DC input

Power Input Method

AC input

Power Supply

AC/DC, internal, 200W

Supported Voltage Range

100—240V AC

Management

Ethernet

AR

Weight

Without mounting brackets: 7.2 kg (15.9 lb)

With mounting brackets: 7.3 kg (16.1 lb)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Supported Rack Depth

482.6 mm (19") four-post racks

Posts depths ranging from 600 to 1,066 mm (23.6-42”)

LCM Display

1.3" touchscreen

ESD Protection

Air: ± 30kV, contact: ± 20kV

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

Ethernet

Yes

SFP28

Yes

LEDs

RPS

Yes

NDAA Compliant

Yes

Certifications

CE, FCC, IC

Software

Application Requirements

UniFi Network

Version 9.0.114 and later
