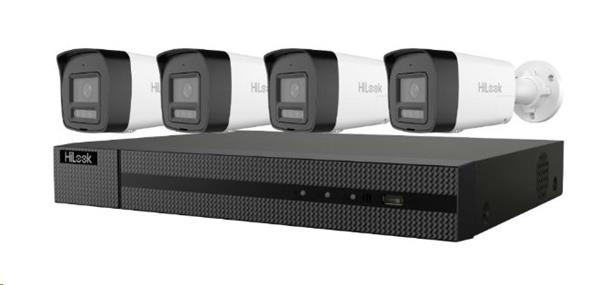

HiLook IK28P-460B - IP Kit

Camera

Camera Case Type

Bullet

Image Sensor

1/2.4" Progressive Scan CMOS

Shutter Speed

1/3 s to 1/100,000 s

Day &Night

IR cut filter

WDR

120 dB WDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Protection Level

IP67

Material

Meta

Wi-Fi Support

No

Camera/General

Power Supply

12VDC ± 25%, 0.41A, 5W MAX



PoE(IEEE 802.3af class 3), 6.5W MAX



Working Temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working Humidity

95% or less (non-condensing)

Dimension (W × D × H)

179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")

Approx. 450 g (1.0 lb.)

Camera/Lens

Focal Length

2.8 mm

Aperture

F1.6

Focus

Fixed

FOV

horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

Lens Mount

M12

Camera/Compression Standard

Video Compression

H.265+;H.265;H.264+;H.264;MJPEG

H.264 Type

Main Profile/High Profile/Baseline Profile

H.264+

Main Profile

H.265 Type

Main Profile

H.265+

Main Profile

Video Bit Rate

32 Kbps to 16 Mbps

Camera/Image

Main Stream

50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)



60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)



Sub-stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)



60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)



Image Setting

Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance



adjustable by client software or web browser



Day/Night Switch

Auto/Scheduled/Day/Night

Camera/Network

Alarm Trigger

Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception

Protocols

TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6,



UDP, QoS, Bonjour, FTP, 802.1x, SMTP



General Function

Anti-flicker, heartbeat, password protection, password reset via email

Client

HiLook

Camera/Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

N/A

Audio I/O

No

Video Out

No

Alarm I/O

No

Reset Button

No

Camera/Illuminator

Supplement Light Type

IR and White Light

Supplement Light Range

Up to 30 m

NVR/Video and Audio

IP Video Input

8-ch

Incoming/Outgoing Bandwidth

80 Mbps/80 Mbps

HDMI/VGA Output

HDMI:4K(4096x2160)/30Hz,4K(3840*2160)/30Hz, 2K(2560×1440)/60Hz



1920*1080/60Hz,1600*1200/60Hz,1280*1024/60Hz,1280*720/60Hz



VGA:1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz



NVR/Decoding

Decoding Format

H.265+;H.265;H.264+;H.264

Capability

1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

NVR/Network

Network Interface

1, RJ45 10/100M Ethernet interface

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,



UPnP™, HTTP, HTTPS



Remote Connection

32

NVR/PoE

Interface

8-ch

Power

? 75 W

Standard

IEEE 802.3 af/at

NVR/Auxiliary Interface

SATA

1

Capacity

Up to 8 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

No

NVR/General

Power Supply

48 VDC

Consumption (without HDD and PoE off)

? 10 W (without HDD and PoE off)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

265 × 225 × 48 mm (10.4" × 8.9" × 1.9")

Weight (without hard disk)

? 1 kg (2.2 lb)

Kit

Accessories

4 network cables, 1 HDMI cable

Hard Drive

Pre-installed 2 TB HDD

Certification

CE

Weight (with package)

? 7.5 kg (16.5 lb)

Decoding

Recording resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback

8-ch
