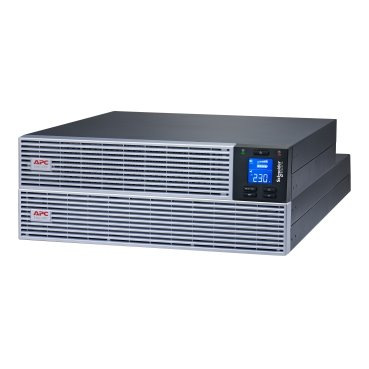

APC Easy UPS On-Line Li-Ion SRVL RT Ext. Runtime 2000VA 230V

APC Easy UPS On-Line, 2000VA, lítium-iónová, rack/veža 4U, 230V, 6 zásuviek IEC C13, slot na inteligentnú kartu, predĺžená doba chodu, so súpravou koľajníc.

Run time for load
1800
W
Min-max: 180-1800 W
1h 5min
Max. Capacity Used
100 %
Main input voltage
230 V AC 1 phase
Other input voltage
230 V
Input connection
IEC 60320 C20
Efficiency at full load
160...300 V full load
110...300 V 60 % load
Input frequency
40...70 Hz auto-sensing
Output voltage
230 V AC 1 phase
Other output voltage
220 V
240 V
Rated power in W
1800 W
Rated power in VA
2000 VA
Output connection
6 IEC 60320 C13
Bypass type
Internal bypass (automatic and manual)
Crest factor
3 : 1
Maximum configurable power in VA
2000 VA
Maximum configurable power in W
1800 W
UPS topology
On-Line
Waveform type
Sine wave
Efficiency
90 % (full load)
Output frequency
50/60 Hz +/- 3 Hz sync to mains
Graphs
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Complementary
Battery type
Li-Ion (Lithium-Ion) external included
Control panel
Multifunction LCD status and control console
Emergency power off
Yes
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity
Serial port
USB port
Available expansion slot
Surge energy rating
945 J
Number of rack unit
4U
Color
Black with silver front bezel
Height
172 mm
Width
438 mm
Depth
616 mm
Product weight
37.1 kg
USB compatible
Yes
Mounting position
Horizontal and vertical
Mounting mode
Rack-mounted with included kit
Provided equipment
Basic UPS signalling RS-232 cable
USB cable
RJ45 cable
RJ11 cable
C13-C14 power cord
IEC-C20 - Shuko input power cord
Rack mounting brackets
Stabilization feet
User manual
Safety guide
Battery cable
Number of power module filled slots
0
Number of power module free slots
0
Redundant
No
Range of product
Easy UPS On-Line
Product or component type
Uninterruptible power supply (UPS)
Environment
Product certification
CB
CE
RCM
EAC
TISI
UKCA
KC
UN 38.3
IEC 62619
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-20…50 °C
Storage altitude
0…15000 m
IP protection
IP20
Relative humidity
0…95 % non-condensing
Storage relative humidity
0…95 % non-condensing
Acoustic level
50 dBA
Heat dissipation
683 Btu/h
Operating altitude
0...3000 m
Batteries & Runtime
Battery type
Li-Ion (Lithium-Ion)
Battery voltage
48 V
Extendable runtime
1
Included battery module
0
Empty battery slot
0
Typical recharge time
4.8 h
Battery life
8…10 year(s)
Battery charging power
480 W
Battery power in VAh
2569 VAh runtime
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
48 cm
Package 1 Width
8 cm
Package 1 Length
60 cm
Package 1 Weight
50.15 kg
