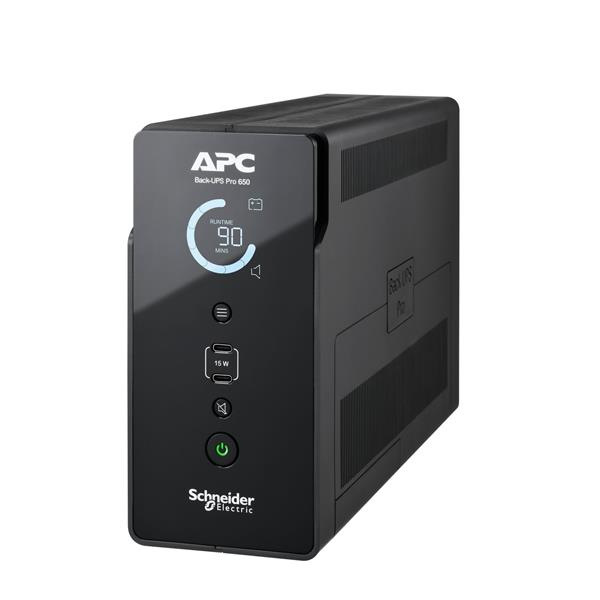

APC Back-UPS BR 650VA 6xIEC C13 outlets

APC Back-UPS PRO 650VA/400W, 6 IEC zásuviek, LCD rozhranie, USB nabíjacie porty, veža, 230V. AVR koriguje kolísanie napätia a zabezpečuje spoľahlivé napájanie.LCD displej poskytuje prehľad o kľúčových stavoch UPS s grafmi zaťaženia a batérie. 2 nabíjacie porty USB typu C na nabíjanie mobilných zariadení a tabletov. 1 GB ochrany dátovej linky zaisťuje úplnú ochranu vášho zariadenia pred prepätím. Ľahko dostupné tlačidlo na prednej strane pre rýchle stlmenie zvukových alarmov.

Technicke specifikacia:

Run time for load

400 W

Min-max: 40-400 W

3min 46s

Max. Capacity Used

100 %

Main Input Voltage

230 V

Main Output Voltage

230 V

Other Output Voltage

230 V

Rated power in W

400 W

rated power in VA

650 VA

Product or component type

Uninterruptible power supply (UPS)

Input Connection Type

IEC 60320 IEC 60309

output connection type

6 IEC 60320 C13 surge

Cable length

1.5 m

Number of cables

1

battery type

Lead-acid battery

Range of product

Back-UPS

USB Charging Port

None

Graphs

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Complementary

UPS connectivity

USB port

Battery type

Lead-acid internal included

Mounting mode

Tower

Batteries & Runtime

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

8 h

Battery charger power

20 W rated

Battery power in VAH

108 VAh runtime

Battery life

3…5 year(s)

Extended runtime

0

General

Number of power module free slots

0

Number of power module filled slots

0

Redundant

No

Physical

Colour

Black

Height

190 mm

Width

91 mm

Depth

310 mm

Net weight

6.4 kg

Mounting preference

No preference

mounting mode

Not rack-mountable

USB compatible

Yes

Input

Network frequency

50/60 Hz +/- 5 Hz auto-sensing

Plug standard

IEC 60309

Input voltage limits

176...294 V

Maximum input current

10 A

Output

Maximum configurable power in W

400 W

Output frequency

47...63 Hz +/- 0.1 % for 50 Hz nominal sync to mains

UPS type

Line interactive

Wave type

Stepped approximation to a sinewave

Output voltage tolerance

+/- 5% static and 100% load step

Maximum output current

10 A

Maximum configurable power in VA

650 VA

Transfer time

8 ms typical : 10 ms maximum

Conformance

Product certifications

CE

Equipment protection policy

Lifetime : 75000 euros

Environmental

Ambient air temperature for operation

0…40 °C

Relative humidity

0…95 %

Operating altitude

0...3000 m

Ambient air temperature for storage

-15…45 °C

Storage Relative Humidity

0…95 %

Acoustic level

45 dBA

Heat dissipation

77.1 Btu/h

Communications & Management

Control panel

LED Status display with on line : on battery : replace battery and overload indicators

LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators

Surge Protection and Filtering

Surge energy rate

1080 J

Noise suppression

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

28.5 cm

Package 1 Width

16.3 cm

Package 1 Length

39.5 cm

Package 1 Weight

7.7 kg

SCC14

10731304792076
