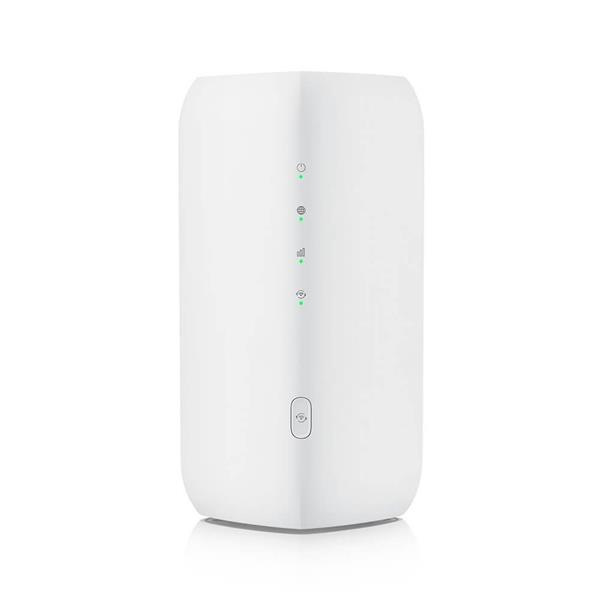

Zyxel FWA505V2, 5G NR Indoor Router, Standalone/Nebula, AX30

Zažite bezproblémové pripojenie s FWA505. Ponúka pohodlie plug-and-play a využíva silu 5G a WiFi 6 na nahradenie tradičných káblových pripojení. Rozlúčte sa s oneskorenými domácimi sieťami a vychutnajte si plynulé konferenčné hovory a živé vysielanie pre SOHO a firmy.Navyše, ako sieťové riešenie na cestách je ideálne pre dočasné potreby, ako sú staveniská, výstavy a krátkodobé obchody. Ušetrí vám drahocenný čas pri nastavovaní.



System specifications

IP networking



Supports IPv4/IPv6 dual stack (NDP IPv6)



DHCP Client/server



Virtual Private Network (VPN) pass-through



Supports NAT/NAPT



Supports DMZ



Multiple APNs



Supports port forwarding



Routing



Supports bridge and router modes



Supports remote management under bridge mode



Static/dynamic route setting



IP firewall



DoS attack detection



Supports SPI



Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping)



Filters LAN MAC address



Filters LAN IP address



Management



Supports local/remote device management and firmware upgrade via TR-069 and web GUI



PIN/PUK management



APN management



Operating frequency band selection



CLI/SSH (local and remote SSH access)



Supports UPnP IGD



Supports web server API to support APPs



Supports Zyxel Nebula app (iOS and Android) for easy installation and local management



WLAN feature



Auto channel selection



WiFi Protected Setup (WPS)



WiFi Multimedia (WMM)



WiFi-enabled devices: up to 64



Security: none, WPA2-Personal, WPA/WPA2, WPA3



MAC address filtering with 64 address supported



Multiple SSIDs/hide SSIDs



WLAN scheduling



Hardware specifications

5G NR interface



3GPP Release 15 standard-compliant



Supports DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78



Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM



Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM





Supports both NSA and SA modes



FDD: n1/n3/n5/n7/n8/n20/n28/n77/n78



TDD: n38/n40/n41





Data rates:



5G SA: DL 4.7 Gbps; UL 2.5 Gbps*



5G NSA: DL 3.7 Gbps; UL 1.5 Gbps*





Output power:



Class 2 (26 dBm) for 5G NR n41/n77/n78



Class 3 (23 dBm) for rest FDD/TDD NR bands



4G LTE interface



3GPP UE Category 19 standard-compliant



Supports DL 4×4 MIMO: B1/B3/B7/B38/B40/B41/B42/B43



Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM



Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM





Supports frequencies:



LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32



LTE-TDD: B38/B40/B41/B42/B43





Peak data rates:



Max. DL 1.6 Gbps/UL 211 Mbps*





Output power:



Class 3 (23 dBm ±2 dBm) for rest FDD/TDD LTE bands



WiFi air Interface



Wireless standard: IEEE 802.11b/g/n/a/ac/ax





Wireless speeds:



Link rates up to 1,774 Mbps* for 802.11ax DBDC





Internal WiFi antenna:



Dual-band & concurrent 2x2 + 2x2





WiFi antenna gain:



? 4 dBi for 2.4 GHz



? 5 dBi for 5 GHz



5G/4G antennas



Two TS9 connectors for external antennas**



Four embedded omni-directional antennas





Antenna Spec (Peak Gain)



700 MHz ~ 960 MHz: 2 dBi



1.4 GHz ~ 2.7 GHz: 5 dBi



3.3 GHz ~ 4.2 GHz: 5 dBi



Hardware interface



Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port



Two external antenna connectors (TS9 type)



One 3FF/Micro SIM card slot



One power on/off button



One WPS/WiFi on/off button



One reset button



One Int/Ext antenna switch



One USB 2.0 host port for file sharing





LED indicators:



Power indication



Signal strength



Internet connection status



WiFi AP status



WPS status



Power consumption

24 W (peak)



Physical specifications

Item



Dimensions (WxDxH)

103 x 103 x 222 mm (4.06” x 4.06” x 8.74”)



Weight

1145 g (2.53 lb.)



Packing



Dimensions (WxDxH)

252 x 171 x 110 mm (9.92” x 6.73” x 4.33”)



Weight

2450 g (5.40 lb.)



Environmental specifications

Operating



Temperature

-10°C to 40°C (14°F to 104°F)



Humidity

10% to 90% RH (non-condensing)



Storage



Temperature

-30°C to 70°C (-22°F to 158°F)



Humidity

0% to 95% (non-condensing)
