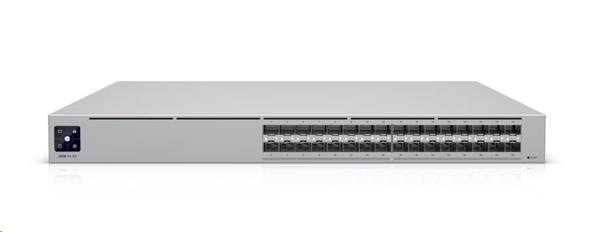

Ubiquiti Professional-grade 32-port, Layer 3 Etherlighting™

Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.



Technical Specifications

Overview

Dimensions

442.4 x 43.7 x 480 mm

(17.4 x 1.7 x 18.9")

Port Layout

25G SFP28

32

(25G/10G/1G)

Redundancy

DC Power Backup

Layer 3

Yes

Form Factor

Rack Mount (1U)

Etherlighting™

Yes

Performance

Switching Capacity

1.6 Tbps

Total Non-Blocking Throughput

800 Gbps

Forwarding Rate

1.2 Bpps

Supported VLANs

1,000

MAC Address Table Size

32,000

L3 Table Size

ARP Entries

128,000

IPv4 Routes

256,000

Packet Buffer Size

8 MB

Access Lists

IPv4

256

MAC

256

Layer 3 Features

DHCP Server (Local Networks)

Yes

DHCP Relay

Yes

Inter-VLAN Routing (Local Networks)

Yes

Static Routing (Local Networks)

Yes

Layer 2 Features

LACP Port Aggregation

Yes

STP & RSTP

Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

Yes

IGMP Snooping

Yes

802.1X Control

Yes

MAC-Based ACLs & Device Isolation

Yes

DHCP Snooping & Guarding

Yes

Egress Rate Limit

Yes

Flow Control

Yes

Storm Control

Yes

Multicast & Broadcast Rate Limiting

Yes

MAC Address Blocking

Yes

IP-Based ACLs & Network Isolation

Yes

MAC-Based Port Restriction

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

LLDP-MED

Yes

Voice VLAN

Yes

Loop Protection

Yes

Hardware

Max. Power Consumption

200W

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz

(1) USP RPS DC input

Power Input Method

AC input

Power Supply

AC/DC, internal, 200W

Supported Voltage Range

100—240V AC

Management

Ethernet

AR

Heat Dissipation (Excluding PoE Output)

457 BTU/hr

Weight

Without mounting bracket: 7.1 kg (15.7 lbs)

With mounting bracket:7.2 kg (15.9 lbs)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Supported Rack Depth

482.6 mm (19") four-post racks

Posts depths ranging from 600 to 1,066 mm (23.6-42”)

LCM Display

1.3" touchscreen

ESD Protection

Air: ± 12kV, contact: ± 8kV

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

SFP28

Yes

LEDs

RPS

Yes

NDAA Compliant

Yes

Certifications

CE, FCC, IC
