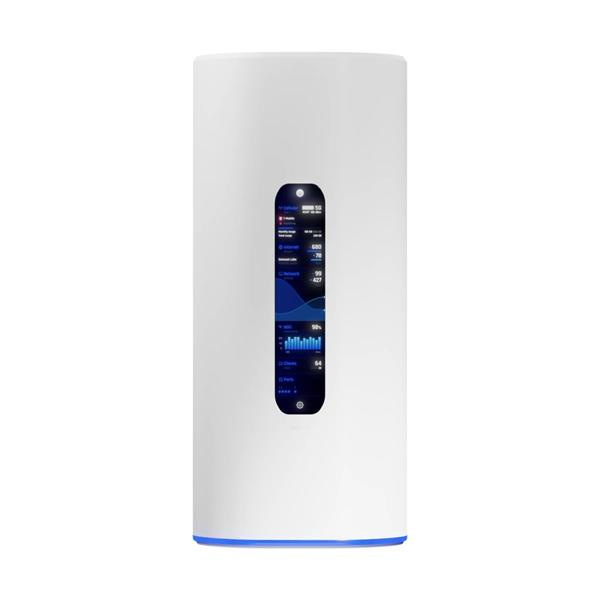

Ubiquiti Desktop Cloud Gateway with full-performance 5G up t

Technical Specifications

Overview

Dimensions

110 x 110 x 250 mm

(4.3 x 4.3 x 9.8")

UniFi Application Suite

Network

Yes

Protect

Yes

Access

Yes

Talk

Yes

Connect

Yes

Managed UniFi Devices

30+

Managed Cameras

(5) HD

(2) 2K

(1) 4K

Simultaneous Users Connected

300+

Max. WAN Port Count

4

Default WAN Ports

(1) 10G SFP+

(1) 2.5 GbE RJ45

Port Layout

2.5 GbE RJ45

4 (1 PoE)

(2.5G/1G/100M)

10G SFP+

1

(10G/1G)

IDS/IPS Throughput

2.3 Gbps

Form Factor

Desktop

Coverage Area

160 m2 (1,750 ft2)

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

20,000+ with CyberSecure



VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Identity Endpoint One-Click VPN

Yes

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Site-to-Site VPN Single Tunnel Throughput

Site Magic

20

VPN Client Single Tunnel Throughput

WireGuard

8

OpenVPN

8



Networking

Multi-WAN Load Balancing

Yes

Dynamic Routing

OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size

2,000

Virtual Network Override

Yes

All Traffic Flows

No



Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz

5.7 Gbps

5 GHz

4.3 Gbps

2.4 GHz

688 Mbps

MIMO

6 GHz

2 x 2 (DL/UL MU-MIMO)

5 GHz

2 x 2 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz

8 dBi

5 GHz

5 dBi

2.4 GHz

4 dBi

Max. TX Power

6 GHz

22 dBm

5 GHz

26 dBm

2.4 GHz

23 dBm

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio

Supported Data Rates

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps



Cellular

5G NR

Category

5G NR Sub-6

Frequency Bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79

Max. TX Power

HPUE power class 2: 26 dBm

4G LTE

Frequency Bands

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

Max. TX Power

HPUE power class 2: 25 dBm

3G UMTS

Frequency Bands

B1, B2, B4, B5, B8, B19

Peak Data Speed

5G NSA

Downlink 3.4 Gbps

Uplink 560 Mbps

5G SA

Downlink 1.8 Gbps

Uplink 650 Mbps

4G LTE

Downlink 1.6 Gbps

Uplink 210 Mbps

Antenna Gain

617-960 MHz: 3 dBi

1710-2700 MHz: 7 dBi

3300-5000 MHz: 8 dBi

5150~5925 MHz: 8 dBi

SIM

(2) Nano SIM

(1) Nano-SIM or eSIM



Hardware

NVR Storage

Pre-installed 64 GB microSD for NVR

Expansion Slot

MicroSD Card

PoE Budget

15.4W

Max. PoE Wattage per Port by PSE

PoE

15.4W

Voltage Range PoE Mode

44-57V

Max. Power Consumption

34.5W (Excluding PoE output)

Power Method

DC jack (54V DC/1.1A)

Power Supply

54V DC/1.1A

(Adapter included)

Supported Voltage Range

100–240V AC

Heat Dissipation

115 BTU/hr (Excluding PoE output)

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

1.4 kg (3.1 lb)

Enclosure Material

Polycarbonate

LCM Display

4.7" touchscreen

Management

Ethernet

Bluetooth

LEDs

Ethernet

Yes

SFP+

Yes

System

Yes

Button

(1) Factory reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, PTCRB, GCF, Wi-Fi Alliance®



Software

Application Requirements

Mobile App

UniFi iOS™: Version 10.33.0 and later

UniFi Android™: Version 10.36.1 and later
