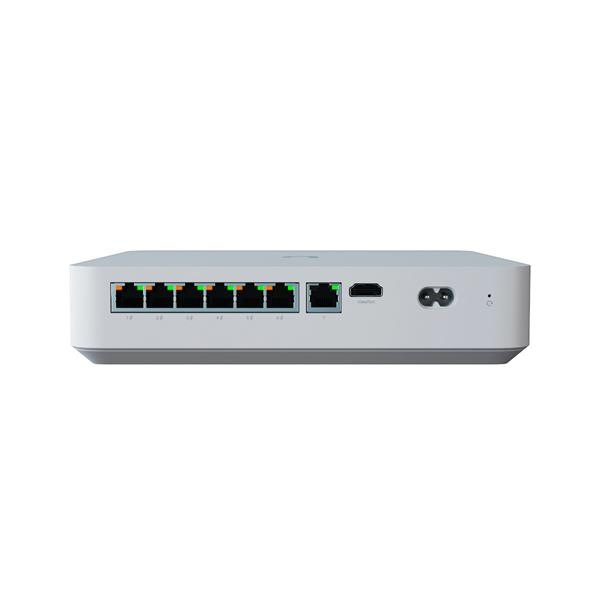

Ubiquiti Compact UniFi Protect NVR with 3.5" HDD support, fe

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K camera or (15) Full HD cameras.



Technical Specifications

Overview

Dimensions

220 x 220 x 47 mm

(8.7 x 8.7 x 1.9")

UniFi Application Suite

Protect

Yes

Access

Yes

Managed Cameras

(15) HD

(8) 2K

(6) 4K

Managed Access Hubs

50

Storage Capacity

(1) 3.5" drive bay

Data Protection

Yes

Vantage Point

Yes

Networking Interface

(1) GbE RJ45 uplink port

(6) GbE PoE RJ45 downlink ports

(1) HDMI port (Viewport)

Form Factor

Compact Desktop

Mounting

Wall, Din rail mount (Included)

Door Access Support

Yes

Hardware

Hard Drive Capacity

(1) 3.5" HDD support

Max. Power Budget for Drives

11W

Max. Power Consumption

9W

Power Method

Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply

AC/DC, Internal, 60W

PoE Budget

40W

Max. PoE Wattage per Port by PSE

PoE

15.4W

Voltage Range PoE Mode

44–57V

Processor

Quad-core ARM® Cortex®-A55 at 1.7 GHz

Memory

4 GB

Management

Ethernet

Bluetooth

Display

1.14" screen

Weight

1.04 kg (2.3 lb)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

LEDs

Ethernet

Yes

PoE

Yes

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

Yes

Certifications

FCC, IC, CE, Electrical Safety
