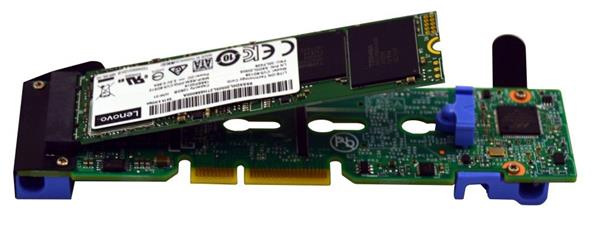

ThinkSystem M.2 SATA 2-Bay RAID Adapter
ThinkSystem M.2 SATA 2-Bay RAID Enablement Kit
Pre modely: SR670 V2 (7Z22 / 7Z23), ST650 V2 (7Z75 / 7Z74), SR630 V2 (7Z70 / 7Z71), SR650 V2 (7Z72 / 7Z73), SR635 (7Y98 / 7Y99), SR655 (7Y00 / 7Z01), SR645 (7D2Y / 7D2X), SR665 (7D2W / 7D2V), SN550 V2 (7Z69), SR860 V2 (7Z59 / 7Z60)
the M.2 SATA 2-Bay RAID Enablement Kit (4Y37A09739) has the following features:
Supports one or two SATA M.2 drives
Support 42mm, 60mm, 80mm and 110mm drive form factors (2242, 2260, 2280 and 22110)
RAID support via an onboard Marvell 88SE9230 SATA RAID Controller
Support JBOD, RAID-0 and RAID-1 (RAID support requires two M.2 drives)
PCIe 2.0 x2 host interface; 6Gbps SATA connection to the drives
Management and configuration support via UEFI and OS-based tools
Supports monitoring and reporting of events and temperature through I2C
Firmware update via Lenovo firmware update tools
Stránky o produkte:
https://lenovopress.com/lp0769-thinksystem-m2-drives-adapters
Pre modely: SR670 V2 (7Z22 / 7Z23), ST650 V2 (7Z75 / 7Z74), SR630 V2 (7Z70 / 7Z71), SR650 V2 (7Z72 / 7Z73), SR635 (7Y98 / 7Y99), SR655 (7Y00 / 7Z01), SR645 (7D2Y / 7D2X), SR665 (7D2W / 7D2V), SN550 V2 (7Z69), SR860 V2 (7Z59 / 7Z60)
the M.2 SATA 2-Bay RAID Enablement Kit (4Y37A09739) has the following features:
Supports one or two SATA M.2 drives
Support 42mm, 60mm, 80mm and 110mm drive form factors (2242, 2260, 2280 and 22110)
RAID support via an onboard Marvell 88SE9230 SATA RAID Controller
Support JBOD, RAID-0 and RAID-1 (RAID support requires two M.2 drives)
PCIe 2.0 x2 host interface; 6Gbps SATA connection to the drives
Management and configuration support via UEFI and OS-based tools
Supports monitoring and reporting of events and temperature through I2C
Firmware update via Lenovo firmware update tools
Stránky o produkte:
https://lenovopress.com/lp0769-thinksystem-m2-drives-adapters
