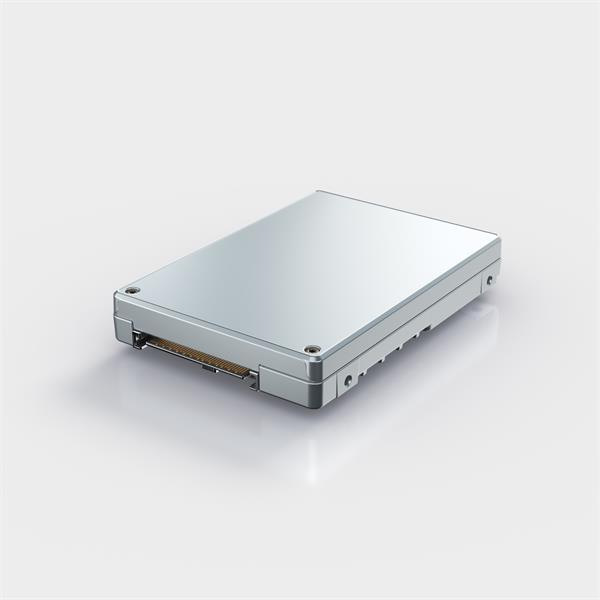

Solidigm D7-P5520 Plus Series (15.36TB, 2.5" PCIe 4.0 x4, 3D

Technical Specification
Drive Configuration
Device Location: Internal
Form Factor: U.2 15mm
Storage Capacity: 15.36 TB
Supports Data Channel: PCIe NVMe 4.0 x4
Memory Technology: 3D NAND
Flash Memory Cell Technology: Triple-Level Cell
External Color: Silver
Performance
Maximum Random Read Rate: 1000000 IOPS
Maximum Random Write Rate: 200000 IOPS
Maximum Sequential Read Rate: 7100 MB/s
Maximum Sequential Write Rate: 3700 MB/s
Reliability
Non-Recoverable Errors: 1 per 10^17
Mean Time Between Failures: 2000000 hr
Shock Tolerance Operating: 1000G @ 0.5ms
Shock Tolerance Storage: 1000G @ 0.5ms
Vibration Tolerance Operating: 2.17G @ 5-700Hz
Vibration Tolerance Storage: 3.13G @ 5-800Hz
Power Consumption
Maximum Power Consumption: 20 W
Minimum Power Consumption: 5 W
Environment
Maximum Operating Ambient Temperature: 70 °C
Minimum Operating Ambient Temperature: 0 °C
Dimensions & Weight
Nominal Weight: 0.165 kg
Warranty and Logistic
Warranty
Warranty Products Returnable: Yes
Warranty Term (month): 60 month(s)
Warranty Validation Criteria: Serial Number
Logistic
Pack Length (mm): 140 mm
Pack Width (mm): 110 mm
Pack Height (mm): 16 mm
Pack Weight Brutto (kg): 0.173 kg
Pack Weight Netto (kg): 0.17 kg
Pieces in pack: 1
Box Weight Brutto (kg): 0.17 kg
Packs in Box: 1
Package Type: Retail
EAN Code: 840307303264
