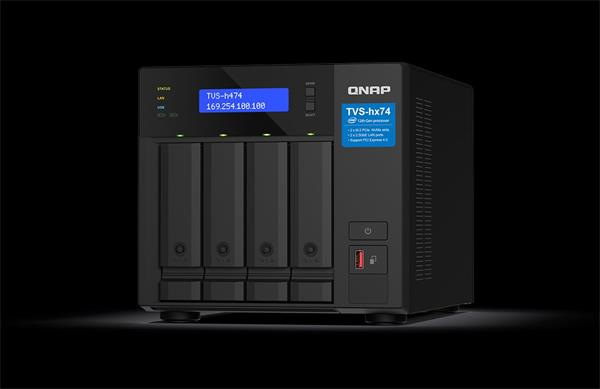

QNAP™ TVS-h474-PT-8G 4bay 2xM.2 8GB 2xLAN 2,5GbE Tower

TVS-h474-PT-8G
CPU Intel® Pentium® Gold G7400 2-core/4-thread 3.7 GHz Processor
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics 710
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding
System Memory 8 GB SODIMM DDR4
Maximum Memory 64 GB ( 2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable (Not supported M.2 SSD)
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x2 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card
10 Gigabit Ethernet Port Optional via PCIe expansion card
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 4 x16
Slot 2: PCIe Gen 3 x2
Card dimensions for PCIe slot 1~Slot 2:185 x 68.9 x 18.76 mm / 7.28 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port 1
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps
1 x Type-A USB 3.2 Gen 2 10Gbps
HDMI™ Output 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz)
Form Factor Tower
LED Indicators HDD 1-4, Status, LAN, USB port, M.2 port
LCD Display/ Button
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 180.2 × 199.3 × 279.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 6.1 kg
Weight (Gross) 7.25 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit 250W, 100-240V
Power Consumption: Disk Standby Mode 34.906 W
Power Consumption: Operating Mode, Typical 78.574 W
Tested fully populated with WD10EFRX hard drives.
Fan System fan: 1 x 120mm, 12VDC
CPU fan: 1 x 60mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Standard Warranty 3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 700
