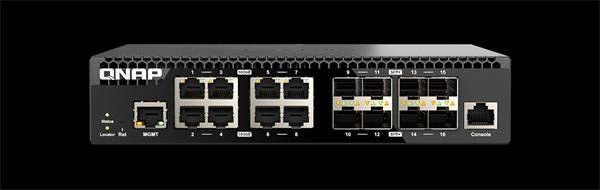

QNAP™ QSW-M3216R-8S8T Half-width Rackmount 16-Port 10GbE Lay

QSW-M3216R-8S8T
Management Type Web Managed
Number of Ports 16
10GbE SFP+ 8 (10G/1G)
10GbE BASE-T (RJ45) 8 (10G/5G/2.5G/1G/100M)
Management Port 1 x 1GbE RJ45
Power Supply Description Internal Power supply Unit
Max. Power Consumption 48.632W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60Hz
MAC Address Table 16K
Total Non-Blocking Throughput 160Gbps
Switching Capacity 320Gbps
Management Interface Web
Console RJ45
Fan PWM VAPO Bearing fan x 2
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.1p Class of Service
Form Factor Half-width rackmount
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status
Buttons Reset button
Dimensions (HxWxD) 43.3 x 207 x 199.5 mm
Weight (Net) 1.52 kg
Weight (Gross) 2.23 kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 5~95% Non-condensing
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years


Stránky o produkte:
https://www.qnap.com/en/product/qsw-m3216r-8s8t
