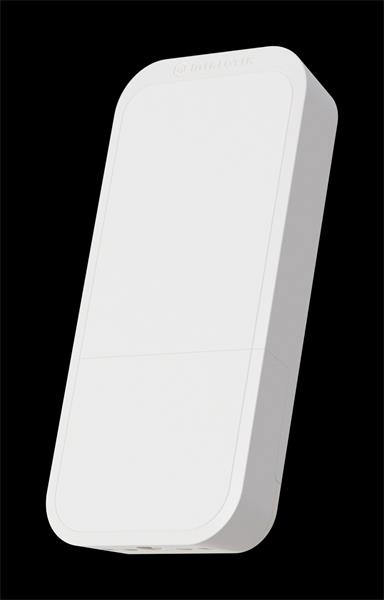

MIKROTIK wAP LR8G kit for 863-870 MHz frequency

Specifications

Details

Product code RBwAPR-2nD&R11e-LR8G

Architecture MIPSBE

CPU QCA9531

CPU core count 1

CPU nominal frequency 600 MHz

RouterOS license 4

Operating System RouterOS v7

Size of RAM 64 MB

Storage size 16 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 60°C



Powering

Details

Number of DC inputs 3 (DC jack, PoE-IN, Automotive)

DC jack input Voltage 9-28 V

Automotive input Voltage 12-30 V

Max power consumption 7 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 9-28 V



Wireless specifications

Details

Wireless 2.4 GHz Max data rate 300 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n

Antenna gain dBi for 2.4 GHz 2

Wireless 2.4 GHz chip model QCA9531

Wireless 2.4 GHz generation Wi-Fi 4



Ethernet

Details

10/100 Ethernet ports 1



Peripherals

Details

Number of SIM slots 1 Modem (Mini SIM)

MiniPCI-e slots 1



Other

Details

PCB temperature monitor Yes

Voltage Monitor Yes

GPS RF connector type uUFL



Certification & Approvals

Details

Certification CE, EAC, ROHS

IP 54

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity

1MBit/s 22 -96

11MBit/s 22 -89

6MBit/s 20 -93

54MBit/s 18 -74

MCS0 20 -93

MCS7 16 -71
