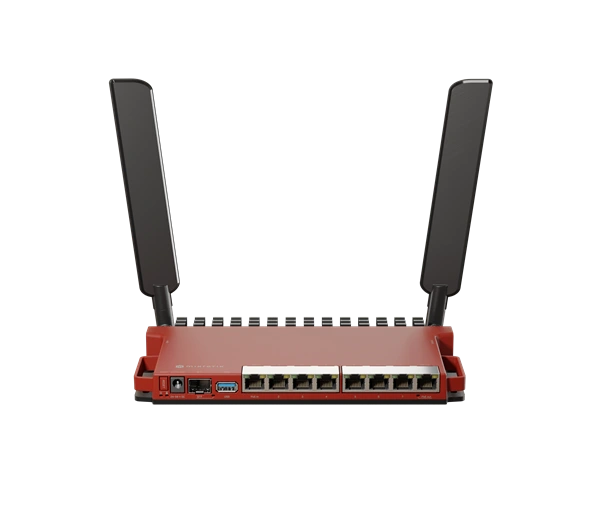

MIKROTIK WiFi router s WiFi 6, 802.11 /b/g/n/ax, až 574 Mb/s

Specifications

Details

Product code L009UiGS-2HaxD-IN

Architecture ARM

CPU IPQ-5018

CPU core count 2

CPU nominal frequency 800 MHz

Switch chip model 88E6190

RouterOS license 5

Operating System RouterOS v7

Size of RAM 512 MB

Storage size 128 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C



Wireless capabilities

Details

Wireless 2.4 GHz Max data rate 574 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz 4

Wireless 2.4 GHz chip model IPQ-5018

Wireless 2.4 GHz generation Wi-Fi 6

WiFi speed AX600



Ethernet

Details

10/100/1000 Ethernet ports 8

Number of 1G Ethernet ports with PoE-out 1



Fiber

Details

SFP ports 1 (2.5G supported)



Peripherals

Details

Serial console port RJ45

Number of USB ports 1

USB Power Reset Yes

USB slot type USB 3.0 type A

Max USB current (A) 1.5



Powering

Details

Number of DC inputs 2 (PoE-IN, DC jack)

DC jack input Voltage 24-56 V

Max power consumption 47 W

Max power consumption without attachments 14 W

Cooling type Passive

PoE in 802.3af/at

PoE in input Voltage 24-56 V



PoE-out

Details

PoE-out ports Ether8

PoE out Passive PoE

Max out per port output (input 18-30 V) 1 A

Max out per port output (input 30-57 V) 450 mA

Max total out (A) 1.0 A


Stránky o produkte:
https://mikrotik.com/product/l009uigs_2haxd_in
