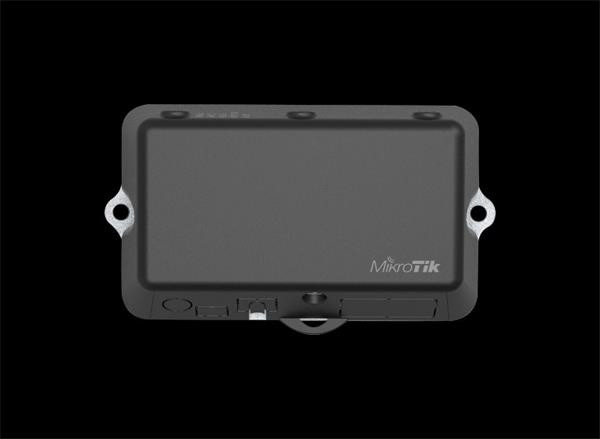

MIKROTIK LtAP mini LTE kit (International bands) with Router

Tiny, affordable weatherproof access point with a built-in LTE modem and GPS. Add extensive networking and tracking options to your vehicle without breaking the bank! This is a 2024 refresh with added B28 band support.


Specifications
Details
Product code RB912R-2nD-LTm&EC200A-EU
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering
Details
MicroUSB input Voltage 5 V
Number of DC inputs 3 (MicroUSB, DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 8 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

Mobile
Details
2G Category Class12
2G bands 8 (900MHz) / 3 (1800MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
MIMO DL 2x2
MIMO UL 1x1
LTE FDD bands 20 (800MHz) / 8 (900 MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
TAC 86314105

Wireless specifications
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet
Details
10/100 Ethernet ports 1

Peripherals
Details
Number of SIM slots 2 Modem (Mini SIM)
MiniPCI-e slots 1
Serial console port RS232

Other
Details
Mode button Yes
GNSS standards GPS
GPS RF connector type uUFL

Certification & Approvals
Details
Certification CE, E-MARK, EAC, ROHS
IP IP54
