MIKROTIK 7x Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet,
As a network administrator, you never know when the next windstorm, lightning, flood, heatwave, or a power outage will strike. But with the right tools you can protect your network from most troubles! Here’s our wishlist for the perfect tool:
easy to deploy
works well in ANY weather
provides extensive power redundancy
can be connected via most common networking interfaces
has a CPU that is strong enough to take full advantage of the most powerful
networking software in the world – RouterOS v7
doesn’t cost a fortune

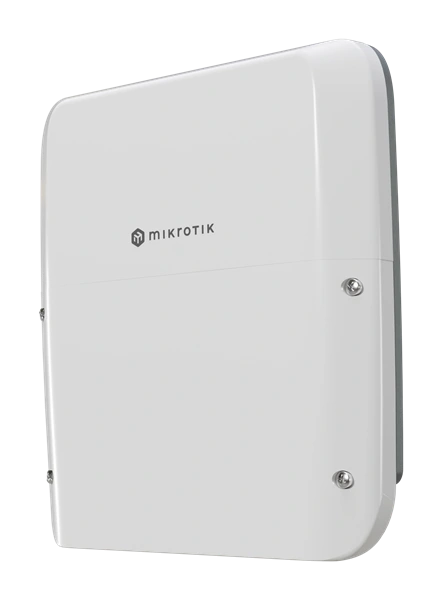

Adding an IP66-rated waterproof enclosure to the RB5009 series allowed us to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups. You’re getting one of the most powerful outdoor networking devices for the best price on the market!
Like the indoor version, this RB5009 has 7x Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a 10G SFP+ cage, and a full sized USB3 port!
When we say “extensive power redundancy”, we really mean it: the unit offers 9 possible ways of powering. There’s a 2-pin power connector on the front, as well as PoE-in and PoE-out on all eight Ethernet ports. The board can use any of these sources to power itself, choosing the one with the highest voltage when multiple sources are available. RB5009 takes up to 21W to power itself. If you’re using PoE-in, the board will stay on even if 8 of your 9 power sources suddenly go down. Unprecedented redundancy!
All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages.
Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. (Note that the included PSU is capable of 96W total, so for maximum output, a different PSU will be needed). You can specify maximum available power from your power sources manually, if necessary. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.
This product also features single voltage PoE-out – it can either be 802.3at/af compatible OR low-voltage PoE-out. That is determined by the voltage on the 2-pin connector, as no voltage conversion is done on this board.
When it comes to processing power and available use-cases, this router can do it all: PPPoE termination, DHCP to customers, Local Queuing, MPLS Push/Pop/Swap and MPLS Forwarding, VPLS/VXLAN Termination, Hardware bridging, and so much more!
The RB5009 series keep redefining affordable reliability for small, medium, and even large ISPs!
Specifications
Details
Product code RB5009UPr+S+OUT
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Powering
Details
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage 24-57 V
Max power consumption 150 W
Max power consumption without attachments 15 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V
PoE-out
Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 900 mA
Max out per port output (input 30-57 V) 420 mA
Max total out (A) 2.59 A
Total output current 2.28
Total output power 130
Ethernet
Details
10/100/1000 Ethernet ports 7
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 2.5G Ethernet ports 1
Number of 2.5G Ethernet ports with PoE-out 1
Fiber
Details
SFP+ ports 1
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Other
Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 66
Stránky o produkte:
https://mikrotik.com/product/rb5009_out
