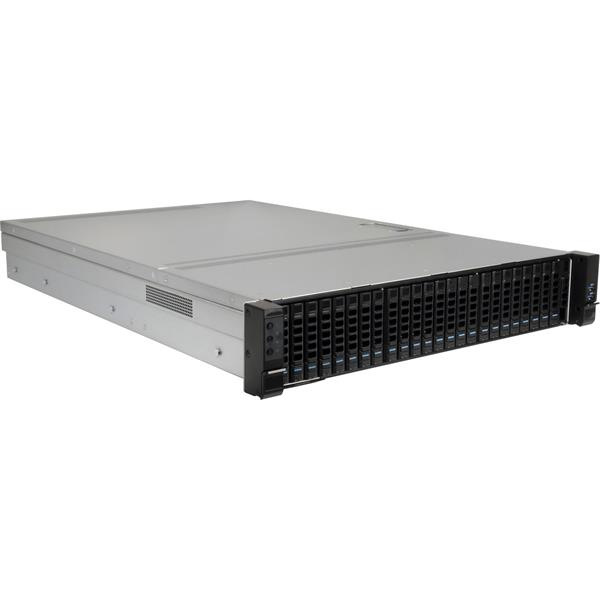

INTER-TECH case storage IPC 2U-2724, rack 2U 24x 2.5" hot-sw

eatures


24x removable frames 2.5"
Hot-swap backplane with SATA/SAS3/ NVMe sockets
3x 80mm fans as standard
UUID support
ID card holder

Backplane
Quantity Backplanes
Quantity hard disks
Transfer speed


Data connection
Electrical connection
3
8/ Backplane
SATA 6 Gb/s
SAS 12 Gb/s
NVMe 16 Gb/s
2x SATA/SAS (SFF8654-4i) + 4x NVMe (SFF8654-8i) per backplane
1x 4-Pin/ Backplane

Size
Mainboard
Case
Cage
Mini-ITX, mATX, ATX, E-ATX (max. 305 x 330mm - 12" x 13")
481 x 700 x 87mm (WxDxH)
447 x 670 x 87mm (WxDxH)

HDD/ ODD Mounting space

5.25" external
3.5" external
3.5" or 2.5" external
3.5" internal
2.5" internal
3.5" or 2.5" internal
-
-
24 (Hot-Swap)
-
2
-

Front connectors

USB A 3.0
USB A 2.0
USB Type C
Headphone
Microphone
Card Reader
2x 3.2 Gen1
-
-
-
-
-

Mounted fans
200mm
140mm
120mm
80mm








60mm
-
-
-
3

2 ball bearing
Voltage: 12V
Speed: 6000 U/m
Air flow: 136 cbm/h
Static pressure: 21.6 mm-H2O
Noise level: 57dbA
Dimensions: 80x80x38mm
-

Further mounting options

Power supply
CPU cooler
Graphic adapter
Fans
ASPOWER 2U and 2U Redundant (DV series)
max. 70mm
max. 330mm (Low-Profile)
-

Scope of delivery

Case
Mounting frame for 2U power supply
Screws
Adapter cable for backplane power connection (12V 4-pin to Molex)

Warranty

24 Months

Logistic data
Net weight
Gross weight
Article number
GTIN
Packing unit
10.19 kgs
14.36 kgs
88887383
4260455648172
1 pcs
12 pcs (pallet)


Stránky o produkte:
https://www.inter-tech.de/productdetails/2U-2724_EN.html
