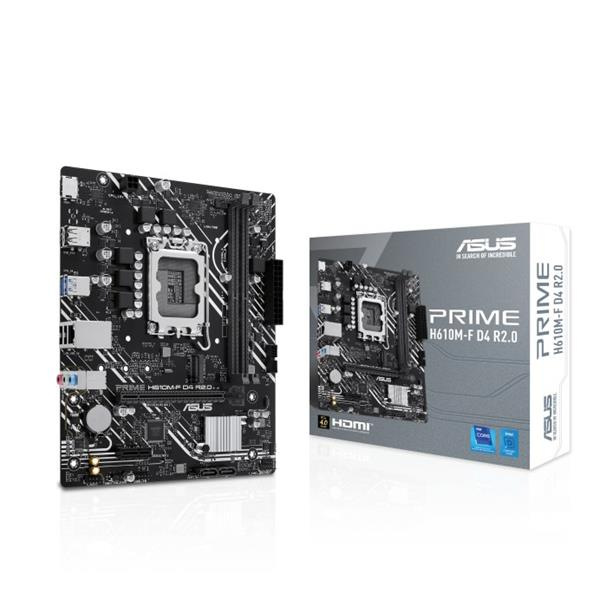

ASUS PRIME H610M-F D4 soc 1700 H610 DDR4 mATX M.2 HDMI

ASUS PRIME H610M-F D4 R2.0, základná doska formátu micro-ATX s čipsetom Intel® H610 a päticou LGA 1700, vybavená rozhraním PCIe 4.0, slotom M.2, podporou DDR4, sieťou Realtek 1Gb Ethernet, portmi HDMI™, SATA 6 Gb/s a USB 5 Gb/s
Pätica Intel® LGA 1700: Pripravená pre procesory Intel® 14., 13. a 12. generácie
Mimoriadne rýchle pripojenie: Slot M.2 s rýchlosťou 32 Gb/s, sieť Realtek 1Gb Ethernet a podpora USB 5 Gb/s
Komplexné chladenie: Chladič čipsetu (PCH)
5X Protection III: Viacnásobné hardvérové ??ochranné prvky pre komplexné zabezpečenie

Model
PRIME H610M-F D4 R2.0

CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports up to Intel® 65W CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® H610 Chipset

Memory
2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Graphics
1 x HDMITM port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage
Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
2 x SATA 6Gb/s ports

Ethernet
1 x Realtek 1Gb Ethernet

USB
Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (F_AUDIO)
1 x Speaker header
1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design

Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x M.2 anchor
Documentation
1 x Quick start guide

Operating System
Windows® 11 , Windows® 10 64-bit

Form Factor
micro-ATX Form Factor
8.9 inch x 7.4 inch (22.6 cm x 18.8 cm )
