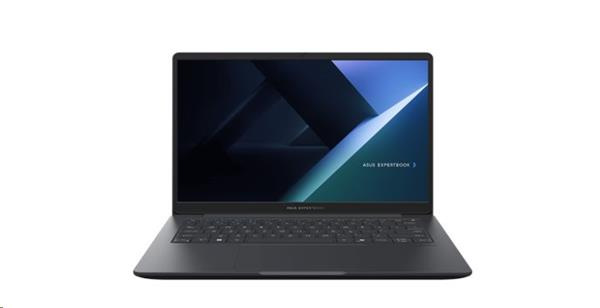

ASUS ExpertBook BM3 BM3606CHA-MBR516512, Ryzen 5 220, 16.0˝
| Part No | 90NX0A52-M002H0 |
| Sales Model Name | BM3606CHA-MBR516512 |
| EAN Code | |
| UPC Code | |
| WEEE | |
| BASE UNIT | VSNX0A52-BUA120 |
| Operating System | Non-preinstalled OS |
| LCD cover-material | Plastic |
| LCD cover-color | Gentle Grey |
| Top case-material | Aluminum |
| Top case-color | Gentle Grey |
| Bottom case-material | Plastic |
| Bottom case-color | Gentle Grey |
| Military grade | US MIL-STD 810H military-grade standard |
| Panel Size | 16.0-inch |
| Backlit | LED Backlit |
| Brightness | 300nits |
| Resolution | WUXGA (1920 x 1200) 16:10 |
| Glare | Anti-glare display |
| Color gamut | NTSC: 45% |
| View angle(H/V) | 160/160 |
| Response time(Typ/Max) (ms) | 20/25 |
| Refresh rate | 60Hz |
| Contrast (Typ) | 1000:1 |
| Touch Panel | Non-touch screen |
| Screen-to-body ratio | 90 % |
| IPS-level | Wide view |
| Processor | AMD Ryzen™ 5 220 Processor 3.2GHz (16MB Cache, up to 4.9 GHz, 6 cores, 12 Threads) |
| Chipset | N/A |
| Discrete/Share | Share |
| Integrated GPU | AMD Radeon™ 740M |
| VRAM | N/A |
| Expansion Slot(includes used) | 2x DDR5 SO-DIMM slots 1x M.2 2230 PCIe 4.0x4 1x M.2 2280 PCIe 4.0x4 |
| DIMM Memory | 16GB DDR5 SO-DIMM |
| Total System Memory | DDR5 16GB |
| Storage | 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera | 1080p FHD camera with IR function to support Windows Hello With privacy shutter |
| Wireless | Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card |
| NumberPad | N/A |
| FingerPrint | FingerPrint |
| Keyboard type | Backlit Chiclet Keyboard with Num-key |
| I/O ports | 1x USB 3.2 Gen 2 Type-C support display / power delivery 1x USB 4.0 Type-C support display / power deliver 2x USB 3.2 Gen 1 Type-A 1x HDMI 2.1 TMDS 1x 3.5mm Combo Audio Jack 1x RJ45 Gigabit Ethernet |
| Audio | Audio by Dirac Built-in speaker Built-in array microphone |
| Battery | 70WHrs, 4S1P, 4-cell Li-ion |
| AC Adapter | TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal |
| Required charging power | Min: 55W Max: 65W *The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. |
| Dimension (WxHxD) | 35.93 x 25.35 x 1.05 ~ 1.89 cm (14.15" x 9.98" x 0.41" ~ 0.74") |
| Weight (with Battery) | 1.82 kg (4.01 lbs) |
| Weight (w/o Battery) | 1.56 kg (3.44 lbs) |
| Security | Fingerprint sensor IR webcam with Windows Hello support Kensington Nano Security Slot™(6x 2.5mm) BIOS Booting User Password Protection BIOS Integrity Measurement Support BIOS Self Recovery BIOS setup user password CSME BIOS Redundancy Assistance Enhanced Password Strength HDD User Password Protection and Security Microsoft Security Level 3 Support Absolute Persistence 2.0 (Computrace) Trusted Platform Module (TPM) 2.0 N/A |
| MyASUS feature | System diagnosis Battery health charging Fan Profile Splendid Function key lock WiFi SmartConnect AppDeals Link to MyASUS |
| MyExpert Features | Advanced Tool ExpertMeet(All) SafeGuard Backup(Dual SSD, additional purchase before shipment) |
| Built-in Apps | ASUS MyExpert (Not supported in China) AI ExpertMeet (China only) MyASUS |
| Reparability Index (for Belgium) | 09.3 |
| Reparability Index (for France) | 09.8 |
| Ecolabels & Compliances | FSC Recycled |
| Base Warranty | 2Y Pick up/ return |
| Recommended Warranty Package Part number//Extension and/or upgrade service from base warranty | ACX10-00400SNX//3Y International Extension ACX11-004840NX//1Y Extension; 3Y OnSite Service(Next Business Day)*upgrade ACX13-00693BNX//3Y Extension; 5Y OnSite Service(Next Business Day)*upgrade *If you would like to know the details, please contact your sales teams. |
| Battery warranty | Commercial NB B series Battery warranty follow system warranty, 4Y-5Y by WEP option. |
| Sustainable Material_Top cover(A part) | 30% PCR recycled plastic(cover or inner frame) 30% PIR recycled aluminum |
| Sustainable Material_Keyboard frame (C part) | 30% PCR recycled plastic(cover or inner frame) |
| Sustainable Material_Bottom cover (D part) | 30% PCR recycled plastic(cover or inner frame) |
| Sustainable Material_Battery | 30% PCR recycled plastic |
| Sustainable Material_Keyboard | 50% PCR recycled plastic cap |
| Sustainable Material_Speaker | 45% PCR + 5% OBP PCR recycled plastic enclosure |
| Sustainable Material_Total PCR recycled plastic | 29.2% |
| Záruka | Celosvetová záruka na hardvér 2 roky, 1 rok záruka na batériový článok |
| Asus Service Hotline: | |
| SR: +421 232 162 621 |
Stránky o produkte:
https://www.asus.com/laptops/for-work/expertbook/asus-expertbook-b3-g2-16-amd/
