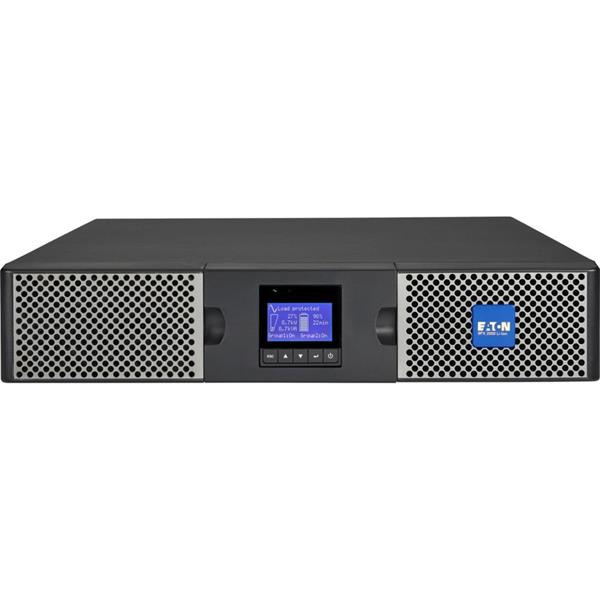

Eaton 9PX Lithium UPS Netpack, 2200 VA, 2200 W, Input: C20,

Eaton 9PX Lithium UPS Netpack, 2200 VA, 2200 W, Input: C20, Outputs: (8) C13, (2) C19, Rack/tower, 2U, Network card included



Special features

Lithium-ion batteries

Double conversion topology

Constantly monitors power conditions and regulates voltage and frequency

First UPS in its class to provide Unity power factor (VA=W)

Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs

Internal bypass allows service continuity in case of UPS fault

Next-generation graphical LCD display

Network card and rackmounting kit delivered as standard

Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)

Meter energy consumption (down to the managed outlet groups)

Topology

Online/Double-conversion

Rack size

2U

Construction type

482.6 mm (19 inch) device

Color

Black/silver

VA rating

2200 VA

Wattage

2200 W

Rack mounting kit

Yes

Package contents

UPS

Input cable

(2) IEC-IEC output cables

Network Management Card

USB cable

Serial cable

(2) Supports for tower mounting

(2) brackets for 19’ mounting

(2) Rack-mounting kit

Cable locking system

Safety instructions

Quickstart guide

Internal bypass

Yes

Hot swap power

No

Auto shutdown function

Yes

Primary frequency - max

70 Hz

Primary frequency - min

40 Hz

Input connection

C20

Input cord length

1.8m

Input nominal voltage

230V default (200/208/220/230/240V)

Nominal frequency

50/60 Hz

Input frequency range

40-70 Hz

Input power factor

>.99

Receptacle

(8) C13, (2) C19

Number of output connections French standard (Type E)

0

Number of Outputs C13

8

Number of Outputs C19

2

Number of outputs hardwired

0

Num of Outputs PC (SCHUKO)

0

Output waveform

Sine wave

Voltage

230V

Output nominal voltage

230V default (200/208/220/230/240V)

Feed type

1

Voltage type

AC

Runtime graph

Battery management

Lithium-ion batteries with battery management system

Automatic recognition of external battery units

Battery replacement

Hot-swappable internal batteries and extended battery modules (EBMs)

Battery type

Lithium-ion

Extended battery capability

Yes

Runtime at half load

22.5 min

Communication

USB port (HID compliant)

Serial port (RS232)

Mini terminal block for remote On/Off

Mini-terminal block for remote power off

Mini-terminal block for output relay

Dry contacts (3 outputs, 1 input, optocoupler, DB9)

Expansion slots

One slot, network card included

Ethernet interface

Yes

Includes network card

Yes

Software compatibility

Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

User interface

Multilingual graphical LCD display

Type of interface

Other

Potential free switch contact

Yes

Altitude

3000 m

BTU Rating

Online: 488

Noise level

<40 dB at 1 meter

Relative humidity

0-96% non-condensing

Temperature range

0° to 40°C (32° to 104°F)

Protocol

SNMP

Integrated functionality

Network Mangement

Input voltage - max

276 V

Input voltage - min

100 V

Output voltage - max

240 V

Output voltage - min

200 V

Secondary frequency - max

60 Hz

Secondary frequency - min

50 Hz

Efficiency at max. load

93

Efficiency (eco-mode)

98

Input voltage range

176-276 V (100-276 V with derating)

Max number of battery packs

4

Output frequency

50/60 Hz

Output power factor

1

Output voltage range

200/208/220/230/240 V +/- 1%

Phase (input)

1

Phase (output)

1

Runtime at full load

11 min

Voltage distortion output (linear load) - max

3

Power consumption

143 W



Product Length/Depth

605 mm

Product Height

86.5 mm

Product Width

440 mm

Product Weight

22.2 kg
