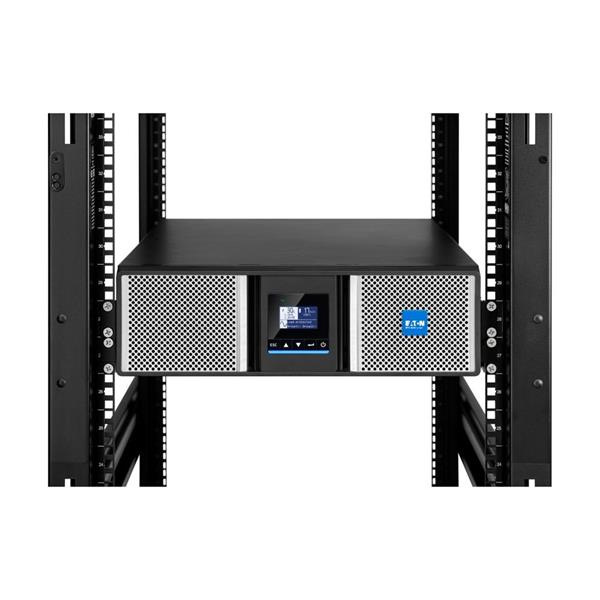

EATON 9PX Gen 2 Lithium UPS Netpack, 6000 VA, 6000 W, Input:

SKU 9PX6KIRTNG2-L Eaton 9PX 6000i RT3U Netpack G2 Li-Ion

Eaton 9PX Gen 2 Lithium UPS Netpack, 6000 VA, 6000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included

Všeobecná špecifikacia

Product Name Eaton 9PX Gen2 UPS

Catalog Number 9PX6KIRTNG2-L

EAN 3553340710742

Product Length/Depth 684 mm

Product Height 130 mm

Product Width 440 mm

Product Weight 38 kg

Warranty 5 year

Compliances LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive

Certifications IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM

Model Code Eaton 9PX 6000i RT3U Netpack G2 Li-Ion

Další informace

Auto shutdown function Yes

Color Black/silver

Construction type 482.6 mm (19 inch) device

Efficiency at max. load 96.5

Hot swap power No

Internal bypass Yes

Package contents UPS(2) cable glands(2) IEC-IEC output cables (1,2m)USB cable (1,8m)Network Management CardSupports for tower mountingRack-mounting kit with brackets and slides for UPSSafety instructionsQuickstart guide

Rack mounting kit Yes

Battery specifications

Battery management Advanced BMS (Battery Management System)Automatic recognition of external battery units

Battery rating 6 Ah

Battery type Lithium-ion

Extended battery capability Yes

Runtime graph View runtime graph

Komunikace

Communication USB port (HID compliant)Serial port (RS232)Mini terminal block for remote On/OffMini-terminal block for remote power offMini-terminal block for dry contacts outputs (2 contacts)Network card

Ethernet interface Yes

Expansion slots One slot, network card included

Includes network card Yes

Potential free switch contact Yes

Software compatibility Eaton Brlightlayer Software suite

Type of interface Other

User interface Multilingual graphical LCD display

Elektrický vstup

Input frequency range 40-70 Hz

Input power factor >.99

Input voltage range 176-276 V (100-276 V with derating)

Nominal frequency 50/60 Hz

Elektrický výstup

Feed type 1

Output nominal voltage 230V default (200/208/220/230/240V)

Output power factor 1

Output voltage range 200/208/220/230/240 V +/- 1%

Output waveform Sine wave

Receptacle (6) C13, (6) C39, Hardwired

Topology Online/Double-conversion

VA rating 6000 VA

Voltage 230V

Voltage distortion output (linear load) - max 1

Wattage 6000W

Okolní prostředí

Altitude 3000 m

Noise level <40 dB at 1 meter

Relative humidity 0-95% non-condensing

Temperature range 0° to 40°C (32° to 104°F)
