Eaton 9SX Gen2 UPS, 6000 VA, 6000 W, Input: Hardwired, Outpu

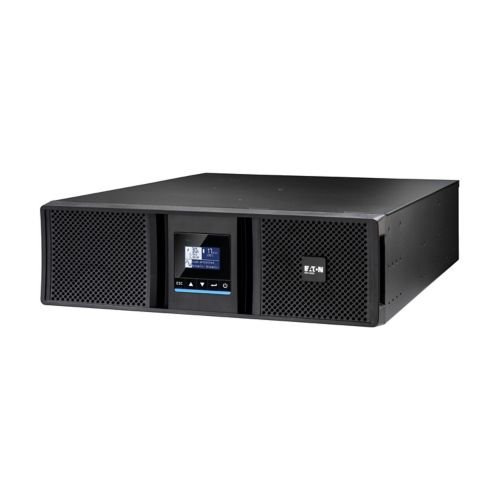

Eaton 9SX Gen2 UPS, 6000 VA, 6000 W, Input: Hardwired, Outputs: (8) C13, (3) C19, Hardwired, Rack/tower, 3U, Rack-mounting kit included.



General specifications

Product Name

Eaton 9SX Gen2 UPS

Catalog Number

9SX6KIRT3UG2

EAN

3553340710667

Product Length/Depth

684 mm

Product Height

130 mm

Product Width

440 mm

Product Weight

43.1 kg

Warranty

2 year

Compliances

LVD Directive (CB)

EMC Directive

RoHS Directive

REACH

WEEE Directive

Packaging Directive

Batteries Directive

Certifications

IEC/EN 62040-1

IEC/EN 62040-2

IEC/EN 62040-3

ENERGY STAR certified

CE

cULus

UKCA

Cm

Ukr

RCM

KCC

BSMI

Model Code

Eaton 9SX 6000i RT3U G2

Additional information

Construction type

482.6 mm (19 inch) device

Package contents

UPS

(2) cable glands

(2) IEC-IEC output cables (1,2m)

USB cable (1,8m)

Cable locking systems

Supports for tower mounting

Rack-mounting kit with brackets and slides for UPS

Safety instructions

Quickstart guide

Internal bypass

Yes

Auto shutdown function

Yes

Color

Black

Efficiency at max. load

96.5

Rack mounting kit

Yes

Hot swap power

No

Battery

Battery type

Sealed, lead-acid

Runtime graph

View runtime graph

Battery replacement

Hot-swappable internal batteries and extended battery modules (EBMs)

Battery quantity

15

Battery management

ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable)

Automatic battery test

Deep discharge protection

Automatic recognition of external battery units

Battery rating

12 V / 5 Ah

Extended battery capability

Yes

Communication

Includes network card

No

Communication

USB port (HID compliant)

Serial port (RS232)

Mini terminal block for remote On/Off

Mini-terminal block for remote power off

Mini-terminal block for dry contacts outputs (2 contacts)

Ethernet interface

No

User interface

Multilingual graphical LCD display

Potential free switch contact

Yes

Expansion slots

One slot

Software compatibility

Eaton Brlightlayer Software suite

Type of interface

Other

Electrical input

Nominal frequency

50/60 Hz

Input power factor

>.99

Input voltage range

176-276 V (100-276 V with derating)

Input frequency range

40-70 Hz

Electrical output

Receptacle

(8) C13, (3) C19, Hardwired

Voltage

230V

VA rating

6000 VA

Wattage

6000W

Output power factor

1

Output waveform

Sine wave

Output nominal voltage

230V default (200/208/220/230/240V)

Voltage distortion output (linear load) - max

1

Feed type

1

Topology

Online/Double-conversion

Environmental

Altitude

3000 m

Noise level

<40 dB at 1 meter

Temperature range

0° to 40°C (32° to 104°F)

Relative humidity

0-95% non-condensing
