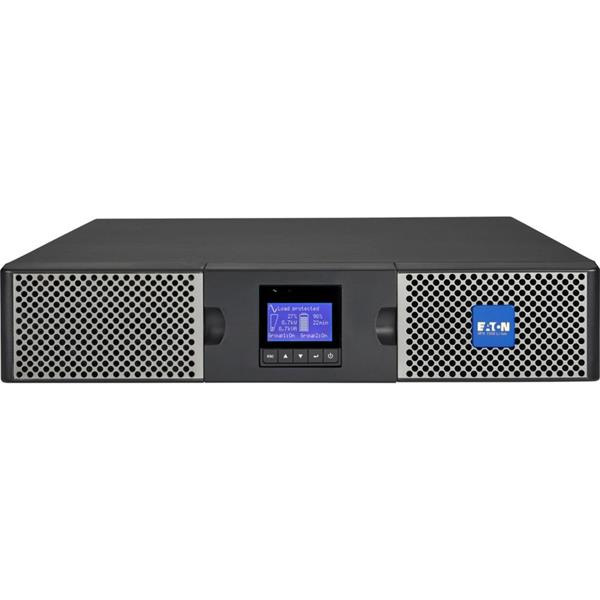

Eaton 9PX Lithium UPS 1500 VA, 1500 W, Input: C14, Outputs:

Eaton 9PX UPS, Lithium, 1500 VA, 1500 W, Input: C14, Outputs: (8) C13, Rack/tower, 2U



Special features

Lithium-ion batteries

Double conversion topology

Constantly monitors power conditions and regulates voltage and frequency

First UPS in its class to provide Unity power factor (VA=W)

Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs

Internal bypass allows service continuity in case of UPS fault

Next-generation graphical LCD display

Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)

Meter energy consumption (down to the managed outlet groups)

Long backup time with up to 4 optional EBM

Topology

Online/Double-conversion

Rack size

2U

Construction type

482.6 mm (19 inch) device

Color

Black/silver

VA rating

1500 VA

Wattage

1500 W

Rack mounting kit

Yes

Package contents

UPS

(2) IEC-IEC output cables

USB cable

Serial cable

(2) brackets for 19’ mounting

(2) Rack-mounting kit

(2) Supports for tower mounting

Cable locking system

Safety instructions

Quickstart guide

Internal bypass

Yes

Hot swap power

No

Auto shutdown function

Yes

Primary frequency - max

70 Hz

Primary frequency - min

40 Hz

Input connection

C14

Input nominal voltage

230V default (200/208/220/230/240V)

Nominal frequency

50/60 Hz

Input frequency range

40-70 Hz

Input power factor

>.99

Receptacle

(8) C13

Number of output connections French standard (Type E)

0

Number of Outputs C13

8

Number of Outputs C19

0

Number of outputs hardwired

0

Num of Outputs PC (SCHUKO)

0

Output waveform

Sine wave

Voltage

230V

Output nominal voltage

230V default (200/208/220/230/240V)

Feed type

1

Voltage type

AC

Runtime graph

Battery management

Lithium-ion batteries with battery management system

Automatic recognition of external battery units

Battery replacement

Hot-swappable internal batteries and extended battery modules (EBMs)

Battery type

Lithium-ion

Extended battery capability

Yes

Runtime at half load

21.5 min

Communication

USB port (HID compliant)

Serial port (RS232)

Mini terminal block for remote On/Off

Mini-terminal block for remote power off

Mini-terminal block for output relay

Dry contacts (3 outputs, 1 input, optocoupler, DB9)

Expansion slots

One slot for optional communication card

Ethernet interface

No

Includes network card

No

Software compatibility

Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

User interface

Multilingual graphical LCD display

Type of interface

Other

Potential free switch contact

Yes

Altitude

3000 m

BTU Rating

Online: 386

Noise level

<35 dB at 1 meter

Relative humidity

0-96% non-condensing

Temperature range

0° to 40°C (32° to 104°F)

Input voltage - max

276 V

Input voltage - min

100 V

Output voltage - max

240 V

Output voltage - min

200 V

Secondary frequency - max

60 Hz

Secondary frequency - min

50 Hz

Efficiency at max. load

92.5

Efficiency (eco-mode)

97.5

Input voltage range

176-276 V (100-276 V with derating)

Max number of battery packs

4

Output frequency

50/60 Hz

Output power factor

1

Output voltage range

200/208/220/230/240 V +/- 1%

Phase (input)

1

Phase (output)

1

Runtime at full load

10 min

Voltage distortion output (linear load) - max

3

Power consumption

113 W



Product Length/Depth

450 mm

Product Height

86.5 mm

Product Width

440 mm

Product Weight

15.8 kg
