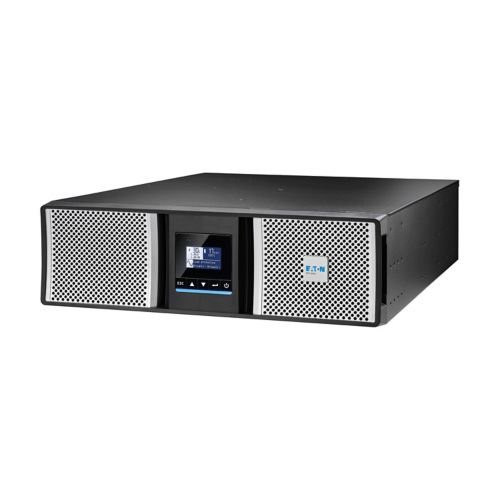

Eaton 9PX Gen2 UPS Netpack, 5000 VA, 5000 W, Input: Hardwire

Sieťový zdroj UPS Eaton 9PX Gen2, 5000 VA, 5000 W, Vstup: Pevné pripojenie, Výstupy: (6) C13, (6) C39, Pevné pripojenie, Rack/veža, 3U, Gigabitová sieťová karta súčasťou balenia, Sada na montáž do racku súčasťou balenia.



Special features:

Double conversion topology

Constantly regulates voltage and frequency

Up to 96.7% Energy efficient, Energy Star qualified, reduce energy and cooling costs

3U form factor

Provides more real power (watts) to protect more equipment with a unity power factor

Internal bypass allows service continuity in case of UPS fault

Graphical LCD display

Network card and rackmounting kit delivered as standard

Compatible with Virtual environments

Meter energy consumption (at the UPS level)

Hot swappable batteries

Topology

Online/Double-conversion

Form factor

Rack/tower

Rack size

3U

Construction type

482.6 mm (19 inch) device

Color

Black/silver

VA rating

5000 VA

Wattage

5000W

Rack mounting kit

Yes

Package contents

UPS

(2) cable glands

(2) IEC-IEC output cables (1,2m)

USB cable (1,8m)

Network Management Card

Supports for tower mounting

Rack-mounting kit with brackets and slides for UPS

Safety instructions

Quickstart guide

Internal bypass

Yes

Hot swap power

No

Auto shutdown function

Yes

Primary frequency - max

70 Hz

Primary frequency - min

40 Hz

Input connection

Hardwired/fixed connection

Input nominal voltage

230V default (200/208/220/230/240V)

Nominal frequency

50/60 Hz

Input frequency range

40-70 Hz

Input power factor

>.99

Receptacle

(6) C13, (6) C39, Hardwired

Number of Outputs C13

6

Number of Outputs C19

6

Number of outputs hardwired

1

Output waveform

Sine wave

Voltage

230V

Output nominal voltage

230V default (200/208/220/230/240V)

Feed type

1

Voltage type

AC

Runtime graph

View runtime graph

Battery management

ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable)

Automatic battery test

Deep discharge protection

Automatic recognition of external battery units

Battery replacement

Hot-swappable internal batteries and extended battery modules (EBMs)

Battery rating

12 V / 5 Ah

Battery type

Sealed, lead-acid

Extended battery capability

Yes

Runtime at half load

9.4 min

Communication

USB port (HID compliant)

Serial port (RS232)

Mini terminal block for remote On/Off

Mini-terminal block for remote power off

Mini-terminal block for dry contacts outputs (2 contacts)

Network card

Expansion slots

One slot, network card included

Ethernet interface

Yes

Includes network card

Yes

Software compatibility

Eaton Brlightlayer Software suite

User interface

Multilingual graphical LCD display

Type of interface

Other

Potential free switch contact

Yes

Altitude

3000 m

BTU Rating

Online: 563 BTU/hr

Noise level

<40 dB at 1 meter

Relative humidity

0-95% non-condensing

Temperature range

0° to 40°C (32° to 104°F)

Protocol

SNMP

Integrated functionality

Network Mangement

Input voltage - max

276 V

Input voltage - min

100 V

Output voltage - max

240 V

Output voltage - min

200 V

Secondary frequency - max

60 Hz

Secondary frequency - min

50 Hz

Battery quantity

15

Efficiency at max. load

96.7

Efficiency (eco-mode)

99

Input voltage range

176-276 V (100-276 V with derating)

Max number of battery packs

12

Output frequency

50/60 Hz

Output power factor

1

Output voltage range

200/208/220/230/240 V +/- 1%

Phase (input)

1

Phase (output)

1

Runtime at full load

3.5 min

Voltage distortion output (linear load) - max

1

Communication interface

USB

RS232

Power consumption

165 W
