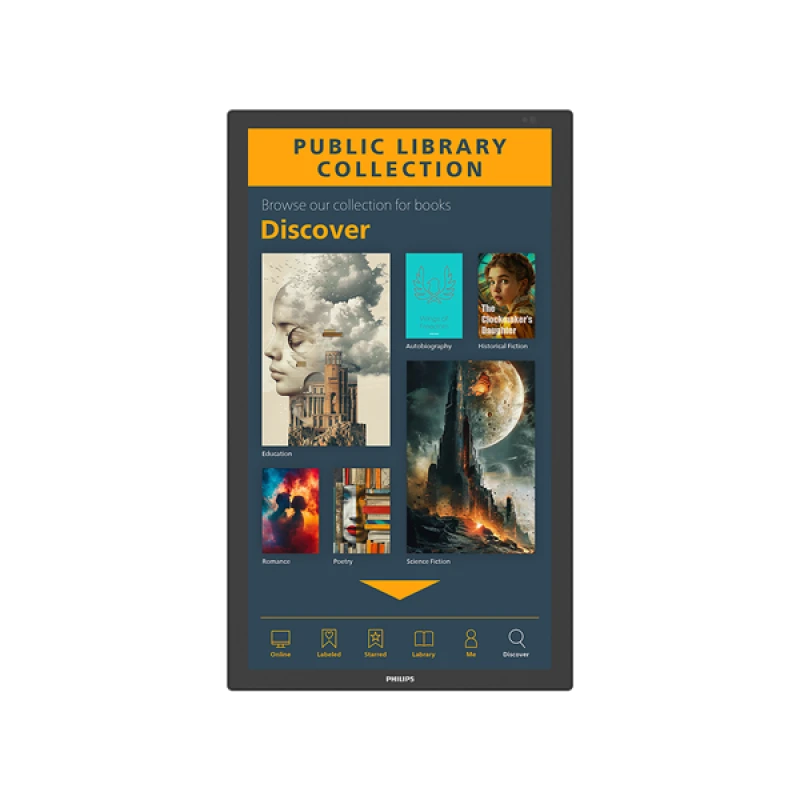

Philips 55BDL3452T/00 55" touch E-LED, 3840x2160, 400cd/m2,

Picture/Display
• Diagonal screen size: 55 inch / 138.8 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 400 cd/m˛
• Contrast ratio (typical): 1300:1
• Surface treatment: Anti-Glare coating
• Aspect ratio: 16:9
• Response time (typical): 8 ms
• Pixel pitch: 0.315(H)x0.315(V)mm
• Display colors: 1.07 B
• Viewing angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Motion compens. deinterlacing,
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
• Panel technology: IPS
• Operating system: Android 8.0
Interactivity
• Multi-touch technology: Projected capacitive
• Touch points: 20 simultaneous touch points
• Plug and play: HID compliant
• Protection glass: 3 mm tempered safety glass
Connectivity
• Video input: DVI-D (x1), HDMI 2.0 (x2), USB 2.0
Type A (x2), USB 2.0 Type B (x1), VGA (Analog DSub) (x1)
• Audio input: 3.5 mm jack
• Audio output: 3.5mm jack
• External control: RJ45, IR (in/out) 3.5 mm jack,
RS232C (in/out) 2.5 mm jack
• Other connections: micro SD, OPS
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz
720 x 400 70Hz
800 x 600 60, 72, 75Hz
3840 x 2160 60 Hz, 50 Hz
• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576p 50Hz
576i 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
1080i 25, 30Hz
480i 30, 60Hz
576i 25, 50Hz
3840 x 2160 24, 25Hz
3840 x 2160 30Hz
Convenience
• Placement: Landscape (18/7), Portrait (18/7)
• Signal loop through: IR Loopthrough, RS232
• Network controllable: RS232, RJ45
• Screen saving functions: Pixel Shift, Low Brightness
• Keyboard control: Hidden, Lockable
• Remote control signal: Lockable
• Energy saving functions: Smart Power
Dimensions
• Set dimensions (W x H x D):
1272.6 x 743.4 x 75.5(D@Wall mount)/
81.7(D@OPS Cover) mm
• Set dimensions in inch (W x H x D):
50.10 x 29.27 x 2.97(D@Wall mount)/
3.22(D@OPS Cover) inch
• Product weight: 27.0 kg
• Product weight (lb): 59.52 lb
• VESA Mount: 400 x 400 mm, M6
• Bezel width: 16.3 mm(T/R/L/B)
Sound
• Built-in speakers: 2 x 10W
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• MTBF: 50,000 hour(s)
• Altitude: 0 ~ 3000 m
• Temperature range (storage): -20~60 °C
• Humidity range (operation)[RH]: 20 ~ 80%
(without condensation)
• Humidity range (storage) [RH]: 5 ~ 95% (without
condensation)
Power
• Mains power: 100 ~ 240 VAC, 50/60Hz
• Standby power consumption: <0.5W
• Consumption (Typical): 140 W
• Power Saving Features: Smart Power
• Consumption (Max): 270 W
• Energy Label Class: G
Accessories
• Stand: BM05922 (Optional)
• Included Accessories: Cleaning cloth (x1), IR
sensor cable (1.8 m) (x1), Philips logo (x1), Power
supply cable (3 m), Quick start guide (x1), Remote
control & AAA batteries, RS232 cable (3 m) (x1),
RS232 daisy chain cable (x1), USB Cover and screw
x1
Miscellaneous
• On-Screen Display Languages: Arabic, English,
French, German, Italian, Japanese, Polish, Spanish,
Turkish, Russian, Simplified Chinese, Traditional
Chinese, Danish, Dutch, Finnish, Norwegian,
Portuguese, Swedish
• Regulatory approvals: BSMI, CB, CE, FCC, Class A,
RoHS, CU, ETL, IMDA, PSB
• Warranty: 3 year warranty
Multimedia Applications
• USB Playback Picture: BMP, GIF, JPEG, JPG, PDF
• USB Playback Audio: AAC, AIF, AIFF, ASF, LPCM,
M3U, M4A, MP3, MP4, WAV, WMA
• USB Playback Video: M2TS, M4V, MK3D, MKV,
MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV
Internal Player
• CPU: 2 x A53 + 2 x A73
• Memory: 2GB DDR3, 8GB
• GPU: ARM Mali G51
• Wifi: 2.4 G, 5 G
