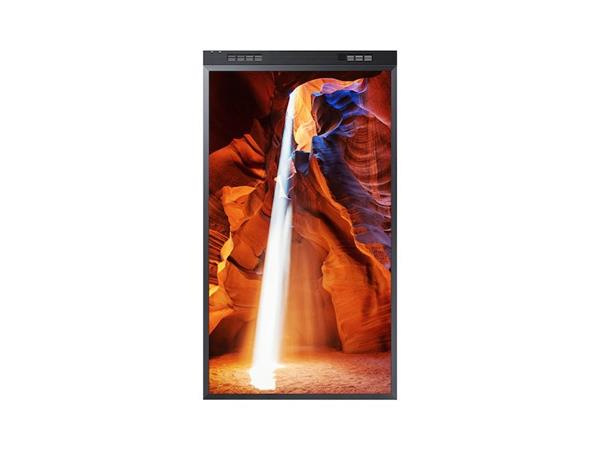

Samsung OM55N-DS 55" 1920x1080 3000/1000cd HDMI USB Wifi pre

Series Name



OMN-S Series



Design

Screen Size



55"



Brightness



3000 nits



Contrast Ratio (Dynamic)



6,000:1



Viewing Angle (H/V)



178/178



Operation Hours



'24/7



General Feature



120Hz / 60Hz E-LED BLU



Pixel Pitch (mm)



0.630 x 0.630



Active Display Area (mm)



1209.6(H) x 680.4(V)



Brightness (Typ.)



3,000 / 1,000 cd/m2



Display Colors



8 bit - 16.7M



Color Gamut



72%



Orientation



Portrait



Response Time(G-to-G)



6ms(3,000nit), 10ms(1,000nit)



H-Scanning Frequency



15 ~ 135kHz (HDMI)



V-Scanning Frequency



24 ~ 75Hz (HDMI)



Maximum Pixel Frequency



594MHz (HDMI)



Connectivity

Input



RGB: N/A

VIDEO: HDMI 2.0 (2)

HDCP: HDCP 2.2

AUDIO: N/A

USB 2.0 (2)



Output



RBG: N/A

VIDEO: N/A

AUDIO: N/A

Power Out: N/A

USB: N/A



External Control



RS232C (In), RJ45 (In)



External Sensor



Detachable Type (IR, Ambient)



Power

Power Supply



AC 100 - 240 V, 50/60 Hz



Power Consumption (Typical/Max)



"Typical: 357 ? IEC 62087 measurement standard Max: 500"



General Feature



Internal



BTU (Max)



1705



Sleep Mode



less than 1W



Power Consumption (Off Mode)



less than 0.5W



Environmental Conditions

Operating Temperature



0?~ 40?



Operating Humidity



10~80%



Features

Key



Dual Display

Slim design Semi-Outdoor

Built-in MagicInfo Player S7, SSSP 7.0



Special



IP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), WiFi Module Embedded (2ea, one per each display)



24/7 Operation



Yes



Internal Player

Processor



Cortex A72 1.7GHz Quad-Core CPU



On-Chip Cache Memory



L1 Instruction Cache : 48KB

L1 Data Cache : 32KB

L2 Cache : 2MB



Clock Speed



1.7GHz



Main Memory Interface



2.5GB

LPDDR4 1.5GHz 64bit



Graphics



Graphic resolution : 1920x1080

Output resolution : 1920x1080

- Supports OpenGL ES



Storage



8GB

(3.88GB Occupied by O/S, 4.12GB Available)



Multimedia



Video Decoder FHD MFD : VP8, H.264, AVS+(60Hz)UHD MFD : HEVC, H.264, VP95K HEVC Decoder, SHVC(ATSC3.0)AVS2.0 HEVC / AVS2.0 1xUHD120p (DP_NR off, FRC bypass) Audio Decoder - AC3 (DD), MPEG



IO Ports



USB 2.0



Operating System



Tizen 5.0 (VDLinux)



Dimensions

Without Stand (W x H x D)



726.8 x 1299 x 69.5 mm



Packaging (W x H x D)



940 x 1466 x 367 mm



Bezel Width



22.8 (even)



Weight

Product Weight



42kg



Package Weight



52kg



Accessories

Included in Box



Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient sensor



Certifications

Safety



60950-1



EMC



Class A



Environment



802.1x(WPA2 Enterprise)
