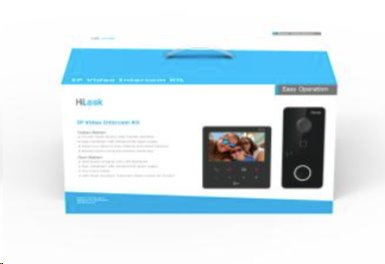

HiLook VI-K46P - Interkom KIT
Door station/System parameters
Operation system
Linux
Processor
Embeded high performance processor
RAM
256 MB
ROM
32 MB
Door station/Video parameters
Supplement light
IR light, up to 3 m
Resolution
Main stream: 1920 × 1080p
Sub stream: 704 × 576p
Lens
2MP HD camera
Wide dynamic range (WDR)
120 dB
Field of view
Horizontal: 131°, Vertical: 78°
Video Compression Standard
H.264
Door station/Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio output
1 built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Audio compression standard
G.711 U
Audio compression Rate
64 Kbps
Door station/Capacity parameters
User capacity
2000
Linked indoor station capacity
16
Card capacity
10000
Door station/Network parameters
Network protocol
TCP/IP, RSTP
Door station/Device interfaces
Network interface
1 RJ-45, 10/100 Mbps self-adaptive
RS-485
1
Alarm input
4
Lock control
1 relay, Max. 30 VDC 2 A
Exit button
1
Door contact input
1
TAMPER
1
Door station/General
Button
1 physical button(s)
Power consumption
< 10 W
Working temperature
-40 °C to 55 °C(-40 °F to 131 °F)
Working humidity
10% to 95% (no-condensing)
Dimension
138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1")
Installation
Surface mounting
Protection level
IP65
Indicator
2
Application environment
Outdoor
Power supply
IEEE802.3af, standard PoE
12 VDC
Net weight: 0.190 kg; Gross weight: 0.414 kg
Indoor station/System parameters
Operation system
Embedded Linux operation system
RAM
128 MB
ROM
16 MB
Processor
Embedded processor
Indoor station/Display parameters
Display resolution
480 × 272
Operation method
Capacitive touch screen with 9 touch buttons
Screen size
4.3-inch colorful TFT screen
Type
Colorful TFT screen
Indoor station/Video parameter
Video compression standard
/
Resolution
/
Lens
/
Wide dynamic range (WDR)
/
FOV
/
Indoor station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U, G.711 A
Audio compression bitrate
64 Kps
Volume adjustment
Adjustable
Indoor station/Capacity parameters
Notice capacity
200
Linked indoor extensions capacity
16
Indoor station/Network parameters
Network protocol
TCP/IP, SIP, RTSP
Wi-Fi
Wi-Fi 802.11 b/g/n, 2.4 GHz
Indoor station/Device interfaces
Network interface
1 RJ-45 10/100 Mbps self-adaptive
Alarm input
4
Indoor station/General
Button
9 physical button
Power consumption
? 4 W
Power supply
IEEE802.3af, Standard PoE,12 VDC
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 95% (no-condensing)
Dimension (L x W x H)
200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
Dimension (W × H × D)
120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
Installation
Wall mounting, table mounting
Application environment
Indoor
Protective level
/
With package: 336.6 g Without package: 197.8 g
Language
English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek
Stránky o produkte:
https://www.hikvision.com/en/products/hilook-video-intercom/kits/ip-kit/vi-k46p/
