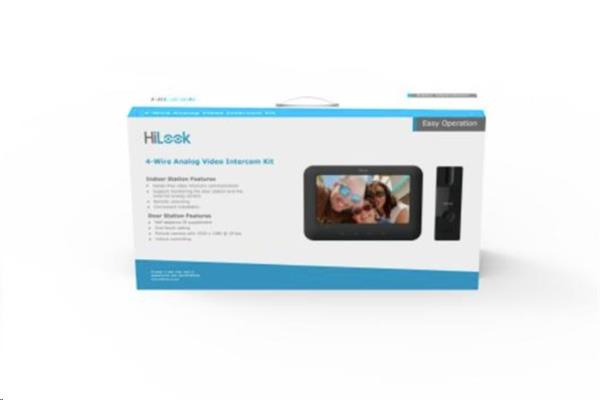

HiLook VI-K12P - Interkom KIT

Door station/Video parameters

Resolution

1920 × 1080



Stream resolution: 960 × 576



Lens

1/2.7" CMOS

FOV

Horizontal: 66.2°,Vertical: 37.2°

Door station/Audio parameters

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Door station/Device interfaces

I/O output

1 relay output

Four-wire

1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power,supply, 1-ch grounding)

Door station/General

Power supply

12 VDC

Power consumption

Max. 5W

Working temperature

-10° C to + 55° C (14° F to 131° F)

Working humidity

10% to 90%

Dimensions

128 mm × 42 mm × 24.8 mm

Indoor station/Display parameters

Operation method

Physical button

Type

7-inch colorful TFT LCD

Resolution

800 × 480

Indoor station/Audio parameters

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio quality

Noise suppression and echo cancellation

Indoor station/General

Power supply

12 VDC

Power consumption

?5 W

Working temperature

-10° C to + 55° C (14° F to 131° F)

Working humidity

10% to 90%

Dimensions (W × H × D)

195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
