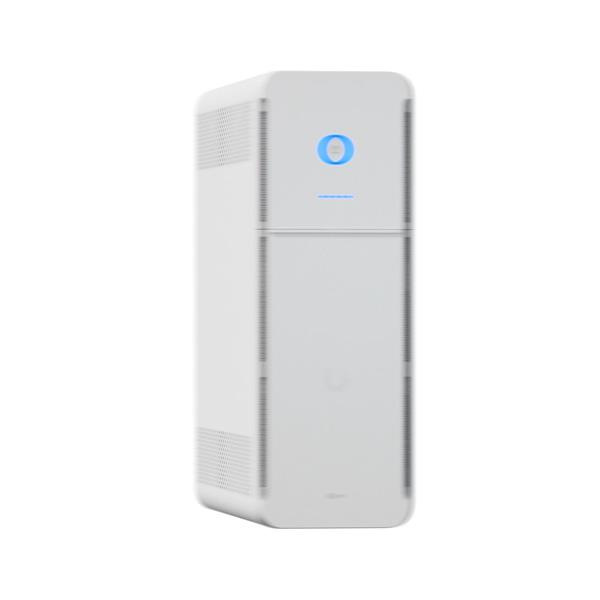

Ubiquiti UniFi managed 1kVA uninterruptible power supply wit

UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, NUT compatibility for third-party devices.



Technical Specifications

Mechanical

Dimensions

288 x 99 x 280.5 mm

(11.3 x 3.9 x 11")

Weight

7.85 kg (17.3 lb)

Enclosure Material

Polycarbonate and acrylonitrile butadiene styrene blend

Form Factor

Desktop

Weatherproofing

IP20

Hardware

Management

Ethernet

Networking Interface

(1) 100/10 MbE port for network connection

(2) GbE ports for surge in/out

Power

(1) OVC II AC in: C14 socket

(5) Battery backup/surge protection: C13

(5) Surge protection: C13

Capacity

1,000VA/600W

Type

Line interactive

Input Voltage Range

170—280V AC

Power Method

(1) TN system, 220—240V AC, 6A Max., 50/60 Hz

Nominal Input Voltage

230V AC

Output Voltage

220—240V AC

Nominal Output Voltage

230V AC

Frequency Range

AC mode: 50/60 Hz ±5 Hz (Auto sensing)

Battery mode: 50 Hz ±1 Hz

AC Voltage Regulation

±10% (Battery mode)

Transfer Time

6 ms typical; 10 ms max. (Battery mode)

Wave Form

Simulated sine wave (Battery mode)

Battery Type

(1) Lead Acid 12V, 9Ah

Runtime

Full load: 2 min

Half load: 7 min

Battery Charging Time

6-8 hours recovery to 90% capacity

Overload at On-Line Mode

110% 5 min go to fault

120% go to fault immediately

Overload at Battery Mode

110% shutdown in 5 sec

120% shutdown immediately

Short Circuit Protection at On-Line Mode

Breaker, 250V AC, 10A

Output Short-Circuit Current

Ipeak 401.9A

Irms 160.7A

Buttons

(1) Power

(1) Factory reset

LEDs

Status

Off: device not turned on

Flashing white: initializing / factory default

Steady white: waiting for adoption

Steady blue: device adoption and working

Flashing blue: battery mode

Alternating white/blue: firmware upgrading

Rapid flashing blue: locate

Steady red: warning

Flashing red: low battery

Battery Indicator

All off: 0%

(1) Steady blue: battery 1—19%

(2) Steady blue: battery 20—39%

(3) Steady blue: battery 40—59%

(4) Steady blue: battery 60—79%

(5) Steady blue: battery 80—100%

Operating Altitude

3,000 m (1.9 mi)

Operating Environment

Pollution Degree 2

Ambient Storage Temperature

-20 to 50° C (-4 to 122° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

0 to 95% noncondensing

Certifications

CE, IEC 62040-1



Compatibility:

USW-Ultra-210W

,

USW-Pro-Max-16

,

USW-Pro-Max-16-PoE

,

USW-Pro-Max-48

,

USW-48-POE

,

USW-Pro-48

,

USW-Pro-HD-24-PoE

,

UDM-SE

,

USW-Aggregation

,

USW-Flex-2.5G-8

,

USW-Pro-24

,

USW-Pro-XG-10-PoE

,

USW-WAN

,

USW-Pro-Aggregation

,

USW-Pro-8-PoE

,

USW-Pro-XG-48

,

UDM-Pro-Max

,

UXG-Pro

,

USW-24-POE

,

UCG-Fiber

,

UX

,

USW-Flex-2.5G-5

,

USW-Pro-Max-48-PoE

,

UNVR-Pro

,

USW-Pro-Max-24-PoE

,

USW-Flex-Mini

,

USW-Flex-Mini-3

,

USW-Flex-Mini-5

,

USW-Pro-24-POE

,

USW-Pro-XG-24

,

UDR7

,

UDR

,

USW-Flex-XG

,

USW-Pro-HD-24

,

USW-Pro-48-POE

,

USW-Lite-8-POE

,

UNVR

,

USW-48

,

UDM

,

UDM-Pro

,

USW-Enterprise-24-PoE

,

USW-Flex-Utility

,

USW-16-POE

,

USW-Pro-XG-48-PoE

,

USW-Pro-XG-24-PoE

,

USW-WAN-RJ45

,

UNAS-Pro

,

USW-Flex

,

USW-Flex-3

,

USW-Ultra-60W

,

UX7

,

USW-24

,

UNAS-2-B

,

UNAS-2-W

,

USW-Ultra

,

USW-EnterpriseXG-24

,

USW-Lite-16-POE

,

USW-Flex-2.5G-8-PoE

,

USW-Enterprise-8-PoE
