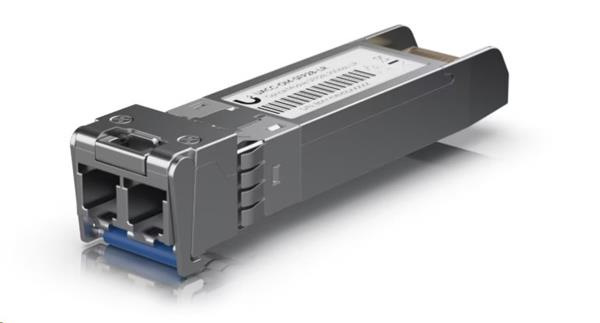

Ubiquiti SFP28 transceiver that supports 25G connections up

SFP28 transceiver that supports 25G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.



Max data rate: 25 Gbps





Compatible with SFP28, SFP+, and SFP interfaces





Duplex LC UPC connector





Supports single-mode fiber connections up to 10 km*



*Fiber cable is not included.







Technical Specifications

Overview

Form Factor

SFP28

Connector

Duplex LC UPC

Supported Media

Single-Mode Fiber

TX Wavelength

1310 nm

RX Wavelength

1310 nm

Supported Data Rate

1 / 10 / 25 Gbps

Supported Cable Distance

10 km (6.2 mi)

Max. Power Consumption

1.3 W

Pack Options

Single Unit

Ambient Operating Temperature

0 to 70° C (32 to 158° F)

WARNING

CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014

Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
