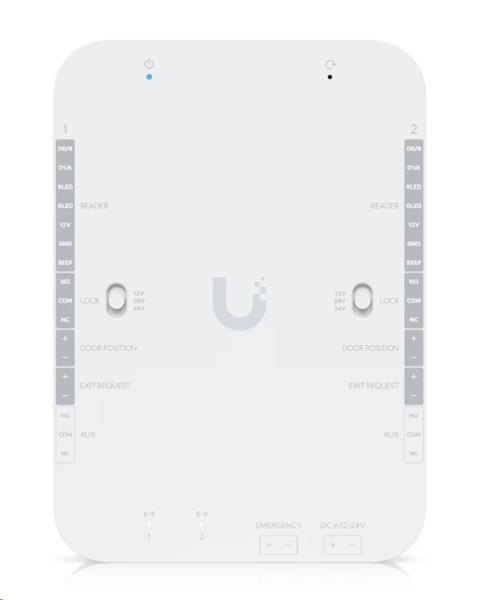

Ubiquiti DC-powered hub that supports Wiegand and OSDP reade

Technical Specifications
Overview
Dimensions
140 x 120 x 45 mm
(5.5 x 4.7 x 1.8")
Supported Doors
2
Maximum User Count
10,000
Input Terminals
(2) Third-party Wiegand Reader / UniFi Retrofit Reader
(2) Door exit request
(2) Door position
(1) Emergency
Power Method
12/24V DC
NDAA Compliant
Yes

Mechanical
Weight
420 g (14.8 oz)
Enclosure Material
Polycarbonate
Mount Material
SGCC steel
Mounting
Din-rail (Included)

Hardware
Digital Input
(2) Third-party Wiegand Reader / UniFi Retrofit Reader
(2) Door exit request
(2) Door position
(1) Emergency
Dry Output Relay
Lock: rated 30V DC, up to 1A
Aux: rated 30V DC, up to 1A
Powered Output Relay
12V Lock: 12V DC, up to 1A
24V Lock: 24V DC, up to 0.5A
Indoor and Outdoor Use
Indoor only
Ambient Operating Temperature
-10 to 40° C
(14 to 104° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(2) 10/100 MbE RJ45 ports
Power Supply
DC 12/24V
Max. Power Consumption
50W
LEDs
W/B Learn More
Buttons
(1) Factory reset
(2) 12V/Dry/24V switch
Recommend Max. Cable Length
UA-Retrofit-Reader (250mA)
18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft)
UA-Lock-Electric
(400mA)
24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (98 ft)
20 AWG length: 30 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks
(1A)
24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
Certifications
CE, FCC, IC

Software
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
