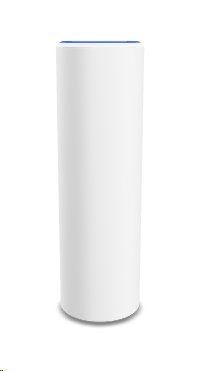

Ubiquiti Compact indoor/outdoor WiFi 7 AP with integrated lo

Technical Specifications

Overview

Dimensions

?48.5 x 159.5 mm

(?1.9 x 6.3")

WiFi Standard

WiFi 7

Spatial Streams

4

Coverage Area

140 m2 (1,500 ft2)

Max. Client Count

200+

Uplink

2.5 GbE

Mounting

Wall, Pole, Table stand

(Mounts included)

Weatherproofing

IPX6 (Installed with the outdoor mount)

Power Method

PoE

Performance

MIMO

5 GHz

2 x 2 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz

4.3 Gbps (BW240)

2.4 GHz

688 Mbps (BW40)

Antenna Gain

5 GHz

Omnidirectional: 6 dBi

Directional: 10 dBi

2.4 GHz

3 dBi

Max. TX Power

5 GHz

24 dBm

2.4 GHz

23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7)

7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page

Yes

Voucher Authentication

Yes

Payment-Based Authentication

Yes

External Portal Server Support

Yes

Password Authentication

Yes

Guest Network Isolation

Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

13W

Includes PoE Adapter

Yes

Supported Voltage Range

42.5–57V DC

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

313 g (11 oz)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate

Mount Material

UV-stabilized polycarbonate

LEDs

System

W/B

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

NDAA Compliant

Yes

Certifications

CE, FCC, IC

Ambient Operating Temperature

-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network

Version 10.1.85 and later

Mobile App

UniFi iOS™: Version 10.32.1 and later

Android™: Version 10.35.1 and later


Stránky o produkte:
https://eu.store.ui.com/eu/en/category/wifi-outdoor/products/u7-mesh
