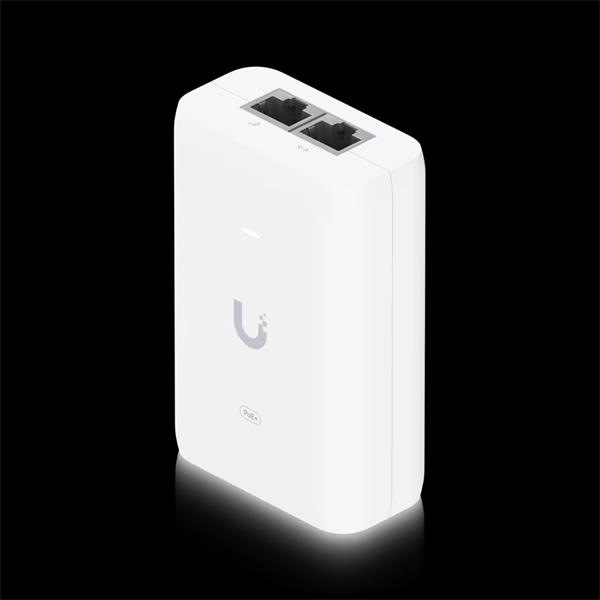

Ubiquiti An adapter that can power UniFi PoE+ devices, reduc

Technical Specifications

Overview

Dimensions

93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight

156 g (5.5 oz)

Power Cable

Included

Output Voltage

48V DC @ 0.65A

Rated Voltage

100–240V AC at 50/60Hz

LAN Activity Indicator

No

Gigabit LAN Port

Yes

Remote Reset Capability

No

Reset Button

No

2-pair Powering

Pins 4, 5 (+) and 7, 8 (-)

AC Connector

IEC-320 C6

Clamping Protection

11V Data, 60V power

Data In / PoE

RJ45 Shielded Socket

Input Current

0.75A Max.

Inrush Current

<100A peak at 26°C

Efficiency

87%

Switching Frequency

70 kHz Max.

Output Ripple

1% Max.

Line Regulation

? 3%

Load Regulation

? 5%

Max. Surge Discharge

1500A (8/20 µs) power

Peak Pulse Current

36A (10/1000 µs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC, UL, CCC
