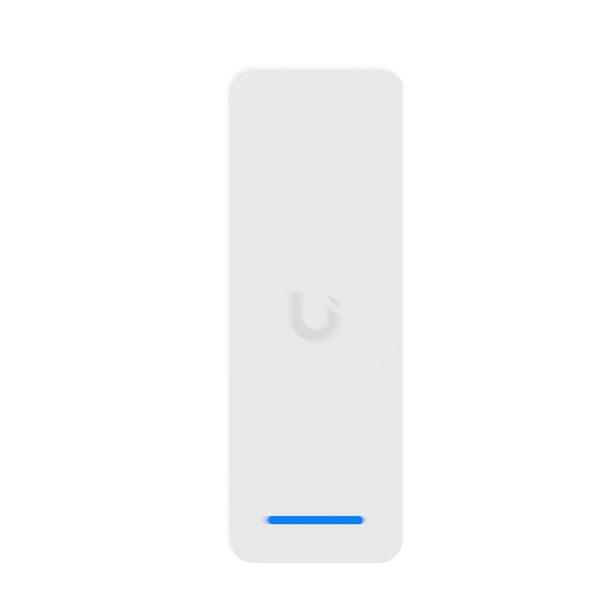

Ubiquiti An access reader with a built-in hub for complete,

Technical Specifications

Overview

Dimensions

126 x 45 x 37.45 mm

(4.9 x 1.8 x 4.5")

NFC Card & Keyfob Access

Yes

Mobile Unlock

Yes

Maximum User Count

3,000

NDAA Compliant

Yes

UL 294 Level

Destructive attack: Level I

Line security: Level I

Endurance: Level I

Standby power: Level I

Tamper Switch

Yes

Weatherproofing

IP55

Mechanical

Weight

140 g (4.9 oz)

Enclosure Material

Polycarbonate, aluminum alloy

Mount Material

Stainless steel

Mounting

Wall mount, gang box mount (Included)

Junction box (Optional)

Hardware

Indoor and Outdoor Use

Yes

Ambient Operating Temperature

-30 to 40° C

(-22 to 104° F)

Ambient Operating Humidity

5 to 90% noncondensing

Networking Interface

(1) 10/100 MbE RJ45 port

Connectivity

BLE 4.2

Ethernet

Power Method

PoE+

UL 294 Power-limited Class 2 PSU

UL 60950-1/62368-1 LPS/PS2 PSU

Max. Power Consumption

18W

Supported Voltage Range

44—57V DC

ESD/EMP Protection

Air: ±8kV, contact: ± 4kV

Powered Output Relay

Lock: 12V DC, 1A

Speaker

Yes

LEDs

R/G/B/W Learn More

Button

(1) Factory-reset

NFC Frequency

13.56 Mhz

NFC Read Range

< 50 mm (1.95'')

NFC Technology

ISO 14443A, 14443B, 15693

NFC Tag 1,2,3,4,5

MIFARE Classic

MIFARE Plus

Mifare Ultralight

MIFARE DESFire

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.

The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Ultra, V01

Software

Management Application

Access

Software Information

The software version can be checked at https://unifi.ui.com
