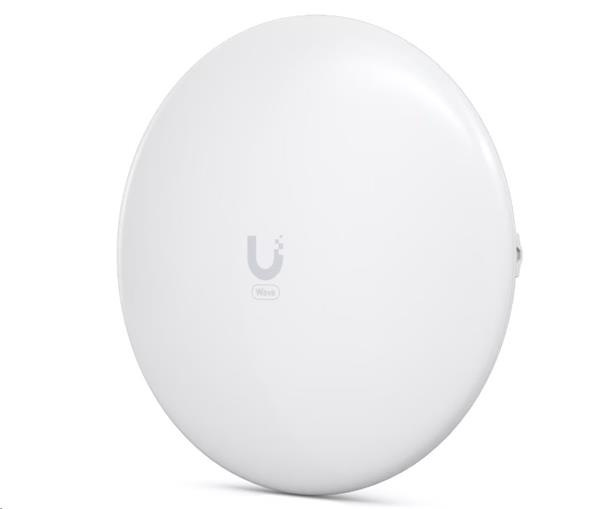

Ubiquiti 60 GHz PtMP station powered by Wave Technology.

Technical Specifications

Mechanical

Dimensions

?256.5 x 113.5 mm

(?10.1 x 4.5")

Weight

Without mount: 932 g (2.1 lb)

With mount: 1.2 kg (2.6 lb)

Enclosure Material

Aluminum alloy, UV stabilized polycarbonate

Mount Material

Aluminum alloy, UV stabilized polycarbonate

Mounting

Pole Mount

Pole Mount Diameter

25 to 63.5 mm (1 to 2.5")

Wind Loading

127 N at 200 km/h (28.6 lbf at 125 mph)

Weatherproofing

IPX6



Hardware

Processor

Dual-core ARM® Cortex®-A53 at 1 GHz

Memory

512 MB

Networking Interface

(1) GbE RJ45 port

Max. Power Consumption

20W

Power Method

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Supported Voltage Range

44–54V DC

22–27V DC

Power Supply

48V DC, 0.65A gigabit PoE adapter (Included)

GPS

Yes

Buttons

(1) Factory reset

LEDs

Power

Flashing white: bootup in progress

White: not connected to UISP application

Blue: connected to UISP application

Flashing blue: locate in progress

Blue/white: firmware upgrade in progress

Ethernet

Flashing blue: Ethernet traffic detected

GPS

Blue: receiving at least (4) GPS satellite signal

Link

White: 5 GHz link

Blue: 60 GHz link

Ambient Operating Temperature

-40 to 60° C (-40 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

Yes

Certifications

FCC, IC, CE



Software

Operating Modes

PtP

PtMP Station

Ubiquiti Specific Features

Discovery Protocol

Yes

Traffic Shaping with Burst Support

Yes

Services

UISP

Yes

Ping Watchdog

Yes

NTP Client

Yes

SNMP

Yes

Tools

Cable Test

Yes

Wave AI

Yes

Wave Technology

Yes

Utilities

Antenna Alignment

Yes

Ping

Yes

Site Survey

Yes

Speed Test

Yes

Traceroute

Yes

Network

Bridge/Router mode

Application Requirements

UISP

Version 1.4.5 and later



System

Total Throughput

2 Gbps

Max. Range

5+ km (3.1 mi)

Encryption

WPA2-PSK (AES)



Radio Frequency

Operating Frequency

Worldwide

57–71 GHz

Channel Bandwidth

2160, 1080, 540 MHz

Operating Channels

58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz

Modulation

16QAM, QPSK

Antenna Gain

41 dBi

Polarization

Vertically-Linear

Beamwidth

Azimuth: 3 dB 1.4°

Elevation: 3 dB 1.4°



Radio Frequency (Back-Up)

WiFi Standard

802.11ax (WiFi 6)

Operating Frequency

US/CA

U-NII-1 5150 - 5250 MHz

U-NII-2A 5250 - 5350 MHz

U-NII-2C 5470 - 5725 MHz

U-NII-3 5725 - 5850 MHz

Worldwide

5150 - 5875 MHz

Channel Bandwidth

20, 40, 80 MHz

Modulation

BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)

Antenna Gain

19 dBi

Polarization

Dual-Linear

Beamwidth

Azimuth: 3 dB 14°

Elevation: 3 dB 14°

Cross-Pol Isolation

20 dB
