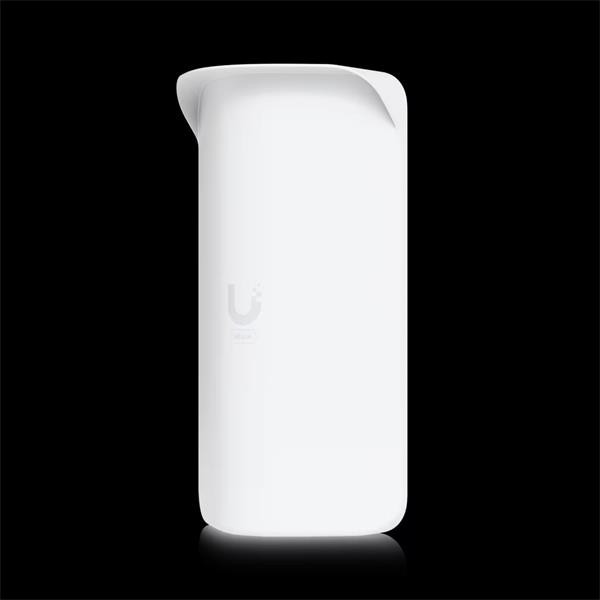

Ubiquiti 60 GHz + 5 GHz multipoint base station featuring 90

Technical Specifications

Mechanical

Dimensions 158.3 x 286.8 x 100.2 mm (6.2 x 11.3 x 3.9")

Weight 1.5 kg (3.3 lb)

Enclosure material UV stabilized polycarbonate, aluminum alloy

Pole mount diameter 25.4 to 60 mm (1 to 2.4") on pipe outer diameter

Wind loading 109.8 N at 200 km/h (25 lbf at 125 mph)

Weatherproofing IPX6

Hardware

Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz

Memory DDR3L 512 MB

Networking interface (1) 2.5 GbE RJ45 port

(1) 10G SFP+ port

Max. power consumption 24W

Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply 48V DC, 0.65A 2.5 GbE PoE adapter (Included)

Supported voltage range 44–54V DC

22–27V DC

GPS Yes

Button Factory reset

LEDs Power, Ethernet, GPS

Ambient operating temperature -40 to 60° C (-40 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, IC, CE

Software

Operating mode PtMP access point

Ubiquiti specific features Wave AI, discovery protocol

Services UISP, ping watchdog, NTP client, SNMP

Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey

Network Bridge mode

Application requirements UISP: Version 2.4.205 and later

System

Total throughput 5.4 Gbps

Supported clients count 31

Max. range Connecting to a Wave Pro: up to 6 km

Connecting to a Wave Long-Range: up to 6 km

Connecting to a Wave Nano: up to 4 km

Connecting to a Wave Pico: up to 0.9 km

Encryption WPA2-PSK (AES)

RF

Operating frequency* 57–71 GHz

*Depends on regulatory region.

Channel bandwidth 2160, 1080, 540 MHz

Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz

*Depends on regulatory region.

Modulation 16QAM, QPSK

Antenna gain 20 dBi

Polarization Vertically linear

Beamwidth Azimuth: 3 dB 90°

Elevation: 3 dB 7°

Electrical downtilt 0°

Back-Up RF

WiFi standard 802.11ax (WiFi 6)

Operating frequency*

US/CA









Worldwide

U-NII-1 5150 - 5250 MHz

U-NII-2A 5250 - 5350 MHz

U-NII-2C 5470 - 5725 MHz

U-NII-3 5725 - 5850 MHz



5150 - 5875 MHz

*Depends on regulatory region.

Channel bandwidth 20, 40, 80 MHz

Modulation BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)

Antenna gain 13 dBi

Cross-pol isolation 18 dB

Polarization Dual-linear

Beamwidth Azimuth: 6 dB 95°

Elevation: 6 dB 25°

Electric downtilt 0°

LEDs

Power Flashing white: bootup in progress

White: not connected to UISP application

Blue: connected to UISP application

Flashing blue: locate in progress

Blue/white: firmware upgrade in progress

Ethernet Flashing white: Ethernet traffic detected

Flashing blue: SFP+ traffic detected

GPS Blue: receiving at least (4) GPS satellite signal
