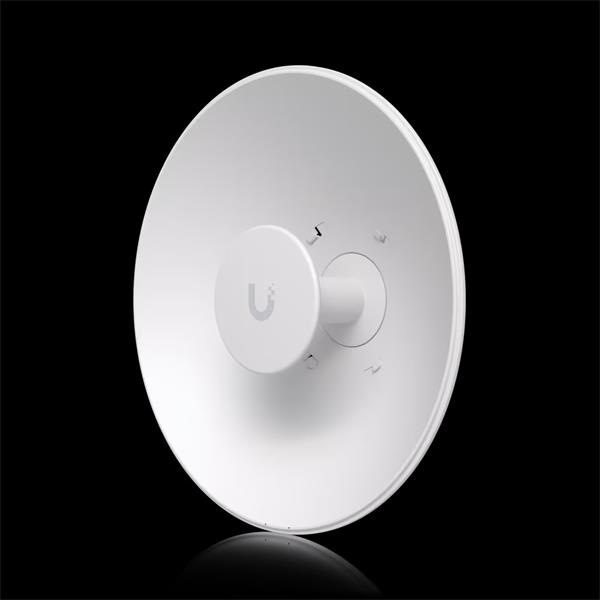

Ubiquiti 5-7 GHz compact dish with 26 dBi gain and radio dir

5-7 GHz compact dish with 26 dBi gain and radio direct connect.

Compatibility:

Wave-MLO5

,

RP-5AC-Gen2

,

AF-5XHD



Technical Specifications

Mechanical

Dimensions

Antenna dish: O420 x 140 mm (O25.6 x 7.9")

Antenna dish with Waveguide: O420 x 211.3 mm (O25.6 x 8.3")

Weight

Antenna dish: 1.95 kg (4.3 lb)

Mount: 1 kg (2.2 lb)

Waveguide: 0.45 kg (1 lb)

Enclosure Material

Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate

Waveguide: Aluminum alloy, UV-stabilized polycarbonate

Mount Material

Powder-coated galvanized steel, aluminum alloy

Wind Survivability

Up to 200 km/h (124 mph)

Wind Loading

348 N at 200 km/h (78 lbf at 124 mph)

Mounting

Pole mount

Alignment mounting kit (Included)

Mechanical adjustment: ±20° elevation

Pole Mount Diameter

O1.25–3" (O32–76 mm)

Weatherproofing

IPX6

Hardware

Frequency Range

5.15 to 6.875 GHz

Beamwidth

Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)

Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)

Electrical Downtilt

0°

Max. VSWR

2:1

Polarization

Dual-Linear

Cross-Pol Isolation

15 dB

NDAA Compliant

Yes
