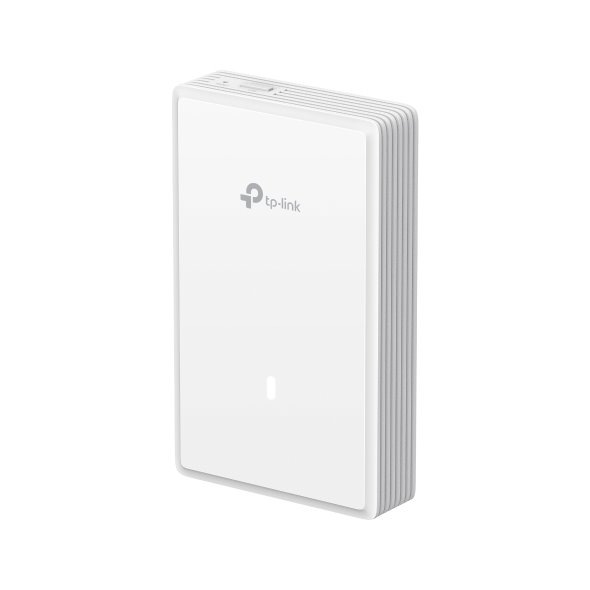

TP-Link "EAP725-Wall Nástenný BE3600 Wi-Fi 7 prístupový bod"

EAP725-Wall


Nástenný BE3600 Wi-Fi 7 prístupový bod


BE3600 Wi-Fi 7 (2882 Mb/s na 5 GHz + 688 Mb/s na 2,4 GHz).


4 priestorové dátové toky (Spatial Streams)

1× 2.5G PoE vstupný port + 1× 2.5G PoE priechodný port + 2× Gigabitové RJ45 porty.

Šírka pásma 160 MHz umožňuje oveľa viac súbežných prenosov.

Multi-RU zabezpečujú vysoký výkon vašej siete.

Pokročilé funkcie: Centralizovaná správa, Mesh a plynulý roaming.


HARDWARE FEATURES
Interface • Uplink: 1× 2.5G Ethernet Port
• Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports
(The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.)
Physical Security Lock No
Button Reset, LED
Power Supply 802.3at/bt PoE
Max. Power Consumption • 802.3bt: 17W (PoE Out support 15.4W)
• 802.3at: 17W (PoE Out support 7W)
Dimensions ( W x D x H ) 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)
Antenna 4× Internal Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Bluetooth V5.2
Mounting Wall Mounting (Screws included)
Management Features
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of an Omada controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog System Log
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
WIRELESS FEATURES
Coverage 50 ?(600 ft2)**
Concurrent Clients 250+§
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 2882 Mbps
• 2.4 GHz: Up to 688 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming?
• Beamforming
• Rate Limit (Based on SSID/Client)
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication?
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power <20 dBm (2.4GHz, EIRP)
<23 dBm (5GHz, band 1 & band 2, EIRP)
<25 dBm (5GHz, band 3, EIRP)
OTHERS
Certification CE, RoHS
Package Content • BE3600 Wall Plate Wi-Fi 7 Access Point
• Installation Guide
• Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
