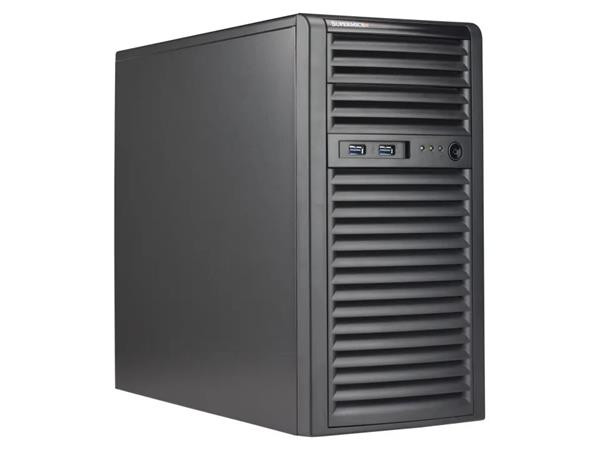

Supermicro Server SYS-530T-I, E-2314, 8GB DDR4 3200, 4TB SAT

Product SKUs
SuperWorkstation SYS-530T-I
Motherboard
Super X12STL-F
Processor
CPU
Single Socket H5 (LGA-1200)
Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count
Up to 8C/16T; Up to 16MB Cache
Note
Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
Up to 1 double-width GPU
System Memory
Memory
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
View Memory Options
Memory Voltage
1.2V
On-Board Devices
SATA
SATA (6Gbps)
Chipset
Intel® C252
Network Connectivity
2 RJ45 1GbE with Intel® I210-AT
View AOC Options
Input / Output
USB
2 USB 2.0 Type-A ports(rear)
Video
1 VGA port
TPM
1 TPM header
System BIOS
BIOS Type
AMI 256MB SPI Flash
Management
Software
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations
ACPI 6.0 Power Management
Security
Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
PC Health Monitoring
Voltage
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Other Features
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
Chassis
Form Factor
mini-tower
Model
CSE-731I-404B
Dimensions and Weight
Height
14.25" (362 mm)
Width
7.25" (184 mm)
Depth
16.75" (425 mm)
Package
20" (H) x 11" (W) x 21" (D)
Weight
Gross Weight: 20 lbs (9.07 kg)
Net Weight: 16 lbs (7.26 kg)
Available Color
Black
Front Panel
LED
HDD activity LED
Network activity LEDs
Power LED
System Overheat LED
Buttons
Power On/Off button
Port
USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
Default
2 PCIe 4.0 x8 FHFL slots
1 PCIe 4.0 x4 FHFL slot
1 PCIe 3.0 x2 FHFL slot
View AOC Options
Drive Bays / Storage
Drive Bays Configuration
Default: Total 4 bays
4 internal fixed 3.5" SATA drive bays
View Drive Options
M.2
1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)
View M.2 Options
Peripheral Bays
2 5.25" bays
System Cooling
Fans
1x 90mm Fan(s)
Power Supply
1x 400W Gold Level (90%) power supply
Dimension (WxHxL) 150 x 86 x 140 mm
Input 100-240Vac
400W: 100-240Vac / 50-60Hz
+12V Max: 12.62A / Min: 0.05A (100Vac-240Vac)
Max: 12.62A / Min: 0A (100Vac-240Vac)
5V SB Max: 2.23A / Min: 0A
Output Type 24pin ATX
Certification Gold Level
[ Test Report ]
Operating Environment
Environmental Spec.
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing
