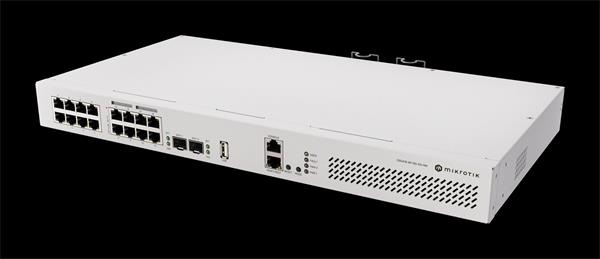

Mikrotik Cloud Router Switch 418-8P-8G-2S+RM with RouterOS L

Specifications

Details

Product code CRS418-8P-8G-2S+RM

Architecture ARM 64bit

CPU IPQ-8072

CPU core count 4

CPU nominal frequency 2208 MHz

Switch chip model 98DX226S

RouterOS license 5

Operating System RouterOS v7

Size of RAM 1 GB

Storage size 128 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -20°C to 70°C

IPsec hardware acceleration Yes



Powering

Details

Number of AC inputs 2

AC input range 100-240

Number of PSU slots 2

Frequency (Hz) 50-60

Max power consumption 215 W

Max power consumption without attachments 28 W

Cooling type 4 fans



PoE-out

Details

PoE-out ports Ether1-Ether8

PoE out 802.3af/at

Max out per port output (input 18-30 V) 1.1 A

Max out per port output (input 30-57 V) 0.55 A

Max total out (A) 5.4 A

Total output current 5.4

Total output power 150

Ethernet

Details

10/100/1000 Ethernet ports 17

Number of 1G Ethernet ports with PoE-out 8



Fiber

Details

SFP+ ports 2

Peripherals

Details

Serial console port RJ45

Number of USB ports 1

USB Power Reset Yes

USB slot type USB 3.0 type A

Max USB current (A) 1



Other

Details

CPU temperature monitor Yes

Current Monitor Yes

PCB temperature monitor Yes

Voltage Monitor Yes

Mode button Yes

Certification & Approvals



Details

Certification CE, EAC, ROHS

IP 20
