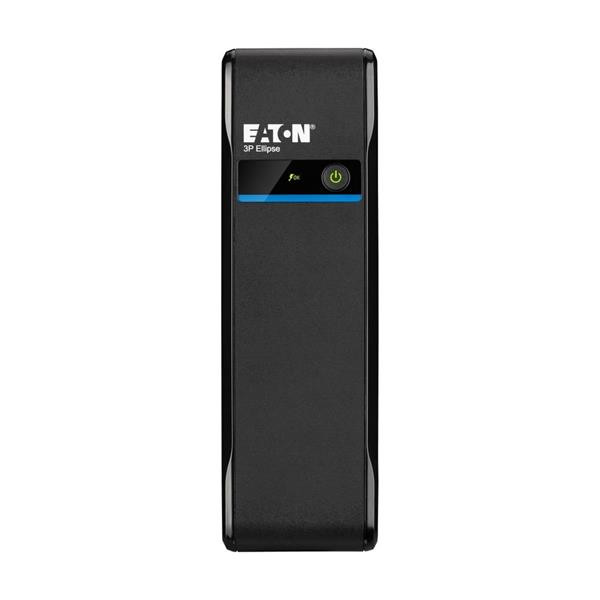

Eaton 3P Ellipse UPS FR, 550 VA, 330 W, Input: C14, Outputs:

Produktové špecifikácie

Special features

Convenient extra-flat design for easy installation in any office environment

High performance surge-protection device compliant with IEC 61643-11 standard

4 outlets to connect your PC + peripherals

Easy to replace battery helps to extend UPS service life

Topology

Offline

Form factor

Tower

Construction type

Free standing model

Color

Black

VA rating

550 VA

Wattage

330W

Rack mounting kit

No

Package contents

Input cable

Quick start

Safety instructions

Surge protection

Yes

Auto shutdown function

No

Primary frequency - max

70 Hz

Primary frequency - min

46 Hz

Input connection

C14

Input cord length

1.5 m

Input nominal voltage

230V default (220/230/240V)

Nominal frequency

50-60 Hz

Input frequency range

46-70 Hz

Receptacle

(3) French, (1) French surge only

Number of output connections French standard (Type E)

4

Voltage

230V

Output nominal voltage

230V default (220/230/240V)

Feed type

1

Voltage type

AC

Runtime graph

Battery management

Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable

Battery rating

12 V / 4.5 Ah

Battery type

Sealed, lead-acid

Extended battery capability

No

Runtime at half load

7.5 min

Expansion slots

No

Ethernet interface

No

Includes network card

No

User interface

LED display

Type of interface

None

Potential free switch contact

No

Altitude

3000 m

Noise level

<25 dB at 1 meter

Relative humidity

0 - 95 % (non-condensing)

Temperature range

0° to 40°C (32° to 104°F)

Operating temperature - max

40 °C

Operating temperature - min

0 °C

Output apparent power

550 VA

Input voltage - max

284 V

Input voltage - min

161 V

Output voltage - max

284 V

Output voltage - min

161 V

Secondary frequency - max

60 Hz

Secondary frequency - min

50 Hz

Battery quantity

1

Efficiency at max. load

97

Efficiency (eco-mode)

97

Input voltage range

184-264 V (adjustable to 161-284 V)

Output frequency

50/60 Hz

Output power factor

0.6

Output voltage range

184-264 V (adjustable to 161-284 V)

Phase (input)

1

Phase (output)

1

Runtime at full load

1,5

Power consumption

10.2 W

USB interface

No
