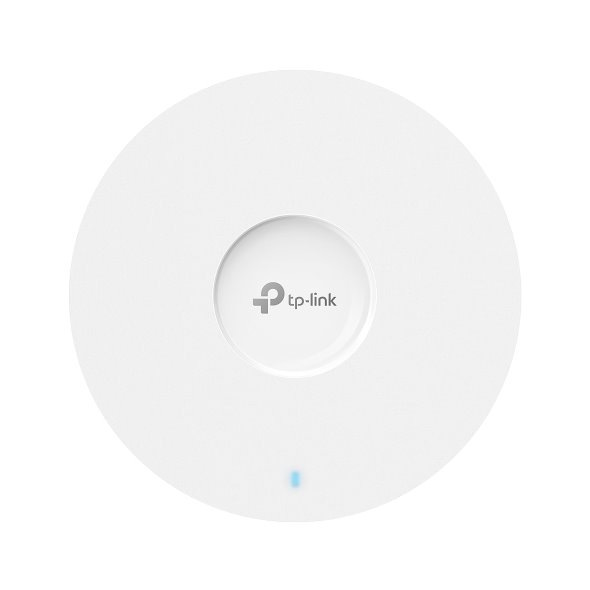

AX5400 Ceiling Mount WiFi 6 Access Point

EAP673
Přístupový bod AX5400 Wi-Fi 6 pro montáž na strop
Extrémně rychlé rychlosti WiFi 6 (574 Mbps na 2.4 GHz + 4804 Mbps na 5 GHz).†
Integrované do Omada SDN, podporující centralizovanou správu v cloudu, ZTP* a další funkce.
160 MHz kanál zdvojnásobuje přenos dat při maximální rychlosti na jednom streamu.‡
Pokročilé funkce: Podporuje bezešvé roaming§, Omada Mesh§ a další.
Podporuje napájení přes 802.3at PoE+ a DC (adaptér není součástí balení) pro flexibilní instalace.


HARDWARE FEATURES
Interface 1× 2.5 Gigabit RJ45 Port
Button Reset
Power Supply • 802.3at PoE
• 12 V / 2 A DC (Power Adapter Not Included)
Max. Power Consumption • EU: 20.8 W
• US: 22.3 W
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi
Bluetooth V5.2
Mounting Ceiling / Wall / Junction Box Mounting (Kits Included)
WIRELESS FEATURES
Coverage 1500 ft2 (140?)*
Concurrent Clients 250+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO (5G: 4x4 DL/UL MU-MIMO)
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming(802.11k/v/r)?
• Omada Mesh?
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication?
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
7-20 dBm(2.4 GHz, EIRP)
7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP)
7-30 dBm(5 GHz, U-NII-2C, EIRP)

• FCC:
4-22 dBm (2.4 GHz)
4-22 dBm (5 GHz, U-NII-1 & U-NII-3)
Management Features
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of an Omada controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Content • EAP673
• Ceiling/Wal/Junctionl Mounting Kits
• Installation Guide
• Cable Compartment Cover
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
