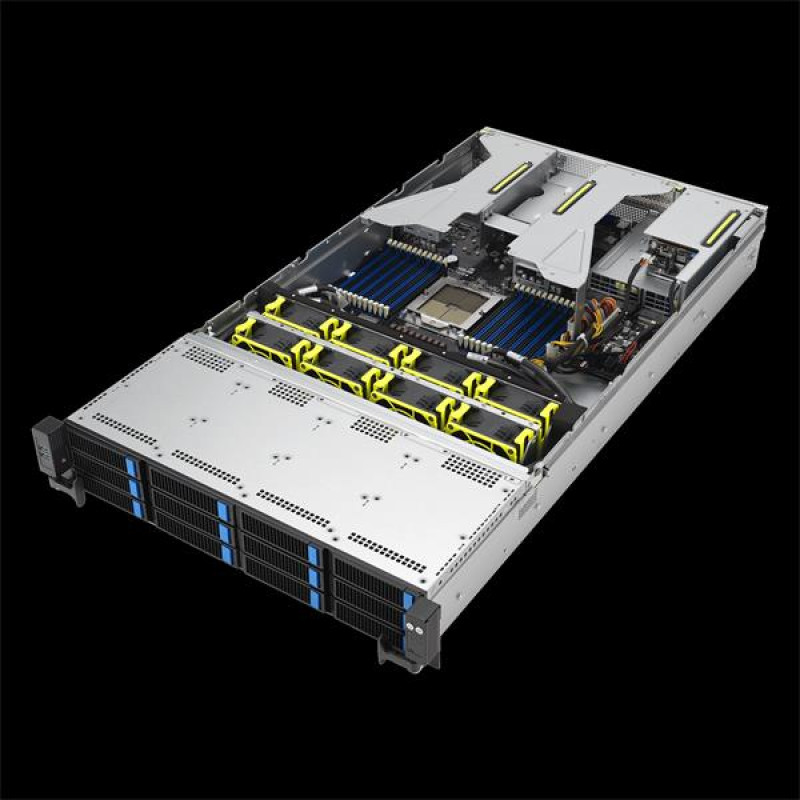

ASUS ServersystemRS520A-E11-RS24U 2U server1x SP3, Epyc 16x

Processor / System Bus

1 x Socket SP3 (LGA 4094)
3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology
AMD EPYC™ 7003 Series
AMD EPYC™ 7002 Series
Generation

E11
Memory

Total Slots :
16 (8-channel)
Capacity :
Maximum up to 4096GB RDIMM
Memory Type :
DDR4 3200/2933 RDIMM
DDR4 3200/2933 LRDIMM
DDR4 3200/2933 LR-DIMM 3DS
Memory Size :
128GB, 64GB, 32GB, 16GB RDIMM
128GB, 64GB LRDIMM
256GB, 128GB, 64GB LR-DIMM 3DS

* Refer to support page for more information
Expansion Slots

2 x PCIe x16 slot(Gen4 x16 link, FHFL) or dual-slot GPU cards or 4 x PCIe x16 slot(Gen4 x8 link, FHFL)
1 x PCIe x16 slot(Gen4 x8 link, LP)
1 x OCP 3.0 Mezzanine slot
Storage

Storage Controller :
CPU Integrated
SAS Controller :
Broadcom MegaRAID 9560-16i(Optional)
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
Drive Bays

24 x 2.5” hot-swap drive bays(24x U.2/U.3 NVMe or 16x U.2/U.3 NVMe + 8x SATA/SAS or 12x U.2/U.3 NVMe + 12x SATA/SAS)
2 x M.2 connector (NGFF 22110/2280/2260/2242. SATA 6Gb/s*2 or PCIe Gen4 x4 link*1 or PCIe Gen4 x2 link*2)
*SAS support only from SAS HBA/RAID Card
*If supporting 24x NVMe, only 1x PCIe Gen4 x8 could use.
System Fan

4 (if choose redundant fan, total:8)
Networking

1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphic

Aspeed AST2600 with 64MB VRAM
Front I/O Ports

2 x USB 3.2 Gen1 ports
Rear I/O Ports

2 x USB 3.2 Gen1 port
1 x VGA port
1 x Management port (RJ45)
2 x Gigabit LAN ports (RJ45)
Switch/LED

Front Switch/LED:
1 x Power switch (w/LED)
1 x Reset Switch
1 x Location Switch (w/LED)
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED

Rear Switch/LED:
1 x Power switch w/LED
1 x Port 80 LED(Q-Code)
1 x Location Switch w/LED
1 x Message LED
OS Support

Please find the latest OS support from https://servers.asus.com/support/os
Management Solution

ASUS Control Center Enterprise (Optional)
On-Board ASMB10-iKVM for KVM-over-IP
Regulatory Compliance

BSMI, CE, RCM, FCC(Class A)
Dimensions

840mm x 449mm x 88.1mm (33.07" x 17.68" x 3.47")
Form Factor

2U
Weight

Net Weight : 19.15KG Gross Weight : 28.74KG
Power Supply

1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127 / 200-240Vac, 10A / 5A (for each inlet), 50-60Hz, Class I
1+1 Redundant 1600W 80 PLUS Titanium Power Supply
1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply
Rating: 100-127 / 200-240Vac, 10A / 8A (for each inlet), 50-60Hz or 240Vdc, 6A
240Vdc Only for China
Environment

Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 60?
Non operation humidity: 20% ~ 90% (Non condensing)
CPU Heatsink/ Cooler

1
Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
* Optional means “built for order”.
