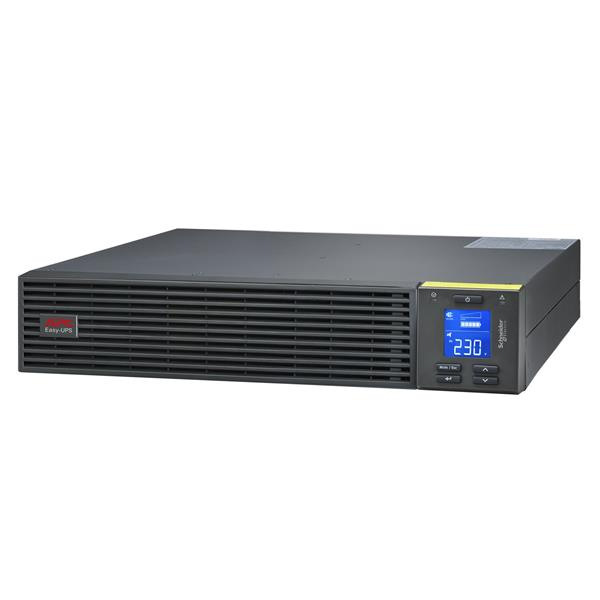

APC Easy UPS On-Line SRV RM 1000VA 900W 230V with Rail Kit

Základní popis

Doba prevádzky pre zaťaženie

900

W

Min-max: 90-900 W

3min 12s

Max. použitá kapacita

100 %

Main input voltage

230 V AC 1 fáz.

Other input voltage

220 V

240 V

Input connection

IEC 60320 C14

Efficiency at full load

110...285 V 40% load

180...285 V plná zátěž

Input frequency

40...70 Hz aut. detekcia

Output voltage

230 V AC 1 fáz.

Other output voltage

220 V

240 V

Rated power in W

900 W

Rated power in VA

1000 VA

Output connection

3 IEC 60320 C13

Bypass type

Vnútorné premostenie (automatické a manuálne)

Crest factor

3 : 1

Harmonic distortion

3 %

Maximum configurable power in VA

1000 VA

Maximum configurable power in W

900 W

UPS topology

On-Line

Waveform type

Sínusoida

Efficiency

88 % (plná zátěž)

Output frequency

50/60 Hz +/- 3 Hz synchronizovaná so sieťou

Vymeniteľné batérie

APCRBCV200

Grafy

Doba prevádzky

View Runtime Graph

Účinnosť

View Efficiency Graph

Doplňky

Additional information

Konfigurovateľné na 220: Menovité výstupné napätie 230 alebo 240

Battery type

Lead-acid internal included

Control panel

Multifunkčná lcd stavová a riadiaca konzola

Free slot

1

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

Serial port

USB port

Available expansion slot

Surge energy rating

945 J

Number of rack unit

2U

Cable length

1,5 m

Number of cables

1

Color

Čierna (RAL 7010)

Height

86 mm

Width

438 mm

Depth

312 mm

Product weight

11,5 kg

Mounting location

Column : Value (Slovak) missing

Mounting preference

Lower

Mounting mode

Montáž na rám

USB compatible

Yes

Mounting position

Vodorovná

Mounting mode

Montáž na rám with included kit

Max runtime

3 min
